<p>I went to Nvidia's GTC conference in March, which as expected for a conference about graphics processing units, had nothing to do with graphics. Instead everyone was very excited about AI. I was assured that AI would sove this and that, and better than I can. Even accepting this very low bar, it is hard to deny that it has reached a stage where it can do some things significantly better than humans, and others nearly as well.</p>

<p>But don't close this tab just yet. I know you're fatigued by posts abotu AI, and I promise there's a point to this. First though, I need to ramble a bit.</p>

<p>It's weird to attend GTC as an engineer who actually works with GPUs. The conference is not about you. It's a sales and marketing expo, with a gold rush frenzy in the air, and if you aren't in a position in your company to sell or buy, you're in the way. More than one conversation died when it became clear that I was interested in a conversation, not a deal. There are technical talks which are fine, and there are some seriously talented engineers there to talk to, if you can find them. But the overall impression is that the real thing being traded here is hype, and for anyone not peddling or buying it, it can be a lonely place.</p>

<p>I had three excellent conversations. One was with a super cool engineer way smarter than me who was also headed to the conference, on the plane. He may be reading this, and he knows who he is. One was with an awesome Uber driver, who told me about moving to Africa during Covid and his experiences living in Tanzania, Zimbabwe, and Ethiopia, before moving back to California. And one was with a wonderful lady at the truly beautiful Basilica of St. Joseph when I took a short walk from the conference, after she noticed my name Joseph on my GTC badge.</p>

<p>This made me wonder why exactly there is an angst about AI destroying humanity. I do not mean in the "AI decided to launch all the ICBMs" sense (we should probably do something about that), but in the more essential sense. There is nothing about those conversations that can be replicated by a chatbot, and at no point did I wish the humans I was talking to were better optimized for conversation. The art in the beautiful basilica may be replicated by AI, but not replaced with it, because it cannot replace the one who made it. The only thing about humanity AI has destroyed is made almost every interaction at GTC about potential sales, LinkedIn connections, and general dealmaking. That is worth mourning.</p>

<p>A worry that AI is a threat to humanity in any deep sense is an essential misunderstanding of what a human being is. Our western society has diligently spent the last several hundred years reducing the person to a meat computer--a bundle of neurons that can perform tasks, and ideally for ten dollars an hour or less. If that is all we are, then a silicon version of it that can do so better is indeed an existential crisis. But as the sick, spiteful man from Notes From Underground insists, I am a man, not a piano key.</p>

<p>My favorite place in the world is a particular monastery, and last time I was there, one of the monks and I were talking about ChatGPT. The monk remarked that ChatGPT can say prayers but cannot pray. I cannot think of a better definition of a LLM than that, or a better definition of a human being. To pray is to imply a real relationship, and that is more than just forming sentences and stringing words together into familiar patterns, even if we sometimes reduce it to that, in our erroneous nominalism and tired routines. If I am to actually have a relationship with my friends, my parents, etc, there is something deeper than just saying setences. It requires <i>love</i>.</p>

<p>Love may be the most uniquely human characteristic, and here I'm obviously not talking about mere affection, or superficial sentimentality, or sexuality, and definitely not some dreary and academic "shared affinity for the human species". I'm not even going to define it, because I think, in the end, it's a mystery and is better left without my clumsy definitions. You know what it is. If you have given and received it, you know from experience, and if you have not, then you know it too, because it is that thing that you want, and that lies behind everything we do.</p>

<p>It's this characteristic that makes me neither excited for AI or worried about it. It cannot replace us, unless we make ourselves replaceable by flattening our concept of the human being to just some kind of meat robot.</p>

<p>Only you can pray.</p>
        ]]>
        </description>
        <guid>http://kernelpanic.life/misc/on-piano-keys-and-gpu-conferences.html</guid>
        <link>http://kernelpanic.life/misc/on-piano-keys-and-gpu-conferences.html</link>
        <pubDate>Sun, 20 April 2025 05:00:00 GMT</pubDate>
    </item>

    <item>
       <title>Declarative Flowchart Making on the Command Line</title>
         <description>
         <![CDATA[

<h2>Declarative Flowchart Making on the Command Line</h2>
<h3>16-October-2024</h3>

<p>Sooner or later, you will find yourself making a flowchart. Obviously, this is already a very unfortunate circumstance, but it gets worse, because now you're going to research all the big players in the flowchart-making space only to find that they all involve a lot of clicking and dragging and are generally very tedious.</p>

<p>This happened to me recently, as you can guess. It would be nice if I could just declare what I want my flowchart to look like and then run something to make it so. If there is a tool for this, I couldn't find it, and I'm obviously not going to pay big SaaS money for it anyway, so I made one.</p>

<p>I called it <a href="https://github.com/jsf0/chartctl">chartctl</a> and it's pretty simple. It will take a JSON file containing your desired flowchart config, and its internal sausage machine will make a PNG out of it. Here's a simple example of that JSON:</p>
<pre>
<code>
{
  "nodes": {
    "start": { "label": "Start Process" },
    "approval": { "label": "Request Approval" },
    "approved": { "label": "Approved" },
    "rejected": { "label": "Rejected" },
    "retry": { "label": "Retry Request" },
    "end": { "label": "End Process" }
  },
  "connectors": [
    { "from": "start", "to": "approval" },
    { "from": "approval", "to": "approved", "label": "Yes" },
    { "from": "approval", "to": "rejected", "label": "No" },
    { "from": "rejected", "to": "retry", "label": "Retry?" },
    { "from": "retry", "to": "approval" },
    { "from": "approved", "to": "end" }
  ]
}
</code>
</pre>

<p>"nodes" are the processes, decision points, and start/end blocks in your flowchart. "connectors" are the lines connecting them. You can call your nodes whatever you want. You can label your connectors whatever you want.</p>

<p>Create the flowchart out of this like so:</p>

<pre><code>$ chartctl -i request_process.json -o request_process</code></pre>

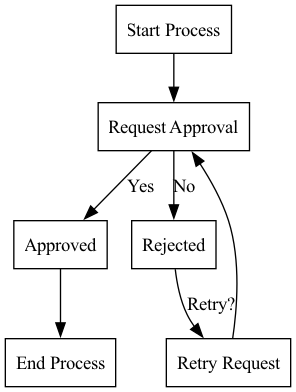

<p>This will generate the following PNG:</p>
<img src="/img/request_process.png" alt="A simple flowchart">

<p>You can optionally add shapes and/or colors to the nodes and connectors too:</p>
<pre>
<code>
{
  "nodes": {
    "start": { "label": "Start Process", "shape": "oval", "fillcolor": "lightblue", "style": "filled" },
    "approval": { "label": "Request Approval", "shape": "diamond", "fillcolor": "yellow", "style": "filled" },
    "approved": { "label": "Approved", "shape": "rectangle", "fillcolor": "lightgreen", "style": "filled" },
    "rejected": { "label": "Rejected", "shape": "rectangle", "fillcolor": "lightcoral", "style": "filled" },
    "retry": { "label": "Retry Request", "shape": "rectangle", "fillcolor": "lightgray", "style": "filled" },
    "end": { "label": "End Process", "shape": "oval", "fillcolor": "lightblue", "style": "filled" }
  },
  "connectors": [
    { "from": "start", "to": "approval" },
    { "from": "approval", "to": "approved", "label": "Yes", "color": "green" },
    { "from": "approval", "to": "rejected", "label": "No", "color": "red" },
    { "from": "rejected", "to": "retry", "label": "Retry?", "color": "orange" },
    { "from": "retry", "to": "approval" },
    { "from": "approved", "to": "end" }
  ]
}
</code>
</pre>

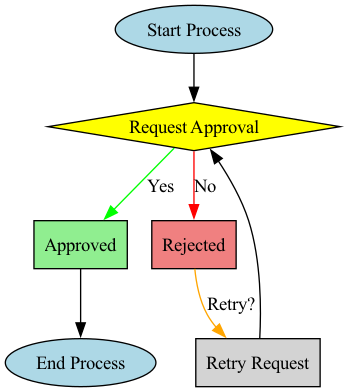

<p>Adding those color and shape directives will create the following flowchart:</p>
<img src="/img/request_process_2.png" alt="A fancier flowchart">

<p>There's probably bugs and limitations with it, but it is Certified Good Enough for me.</p>

        ]]>
        </description>
        <guid>http://kernelpanic.life/software/declarative-flowchart-making.html</guid>
        <link>http://kernelpanic.life/software/declarative-flowchart-making.html</link>
        <pubDate>Wed, 16 October 2024 05:00:00 GMT</pubDate>
    </item>

    <item>
       <title>OpenBSD and High DPI Displays</title>
         <description>
		 <![CDATA[

	<h2>OpenBSD and High DPI Displays</h2>
<h3>11-May-2024</h3>

<p>I put OpenBSD back on the <a href="/hardware/thinkpad-x1-carbon-gen9.html">4k X1 Carbon</a> and realized that I forgot how I made X11 usable on a high DPI display last time. So I followed standard X11 troubleshooting procedures of changing the same config file name at all 947 possible paths that X11 will search for it until something looked different on the screen. If you're reading this, you probably are in the midst of this same procedure, and no, nothing I found online worked either.</p>

<p>For GTK and QT5 applications, I set to 2x scaling in my ~/.xsession like this:</p>

<pre>
<code>
export GDK_SCALE=2.0
export QT_SCALE_FACTOR=2.0
</code>
</pre>

<p>Note that it really is "G<b>D</b>K" instead of GTK.</p>

<p>Next, I set Xft.dpi and the Xcursor sizes in ~/.Xdefaults. The internet inists on telling you to change these in .Xresources, but don't do that. OpenBSD's xenocara really likes .Xdefaults. Even if I manually tried to xrdb load .Xresources, random stuff wouldn't work, like the Xcursor sizes (even though Xft.dpi did work for some reason). My ~/.Xdefaults is below:</p>

<code>
<pre>
Xft.dpi: 144
Xcursor.theme: Adwaita
Xcursor.size: 64
</pre>
</code>

<p>Obviously adjust those values as you desire.</p>


        ]]>
        </description>
        <guid>http://kernelpanic.life/software/openbsd-high-dpi.html</guid>
        <link>http://kernelpanic.life/software/openbsd-high-dpi.html</link>
        <pubDate>Fri, 11 May 2024 05:00:00 GMT</pubDate>
    </item>

    <item>
        <title>Cloning a System With Ansible</title>
          <description>
              <![CDATA[

<h2>Cloning a System with Ansible</h2>
<h3>16-Feb-2023</h3>

<p>I've wanted a tool to take an existing system and create an Ansible playbook that will duplicate it. This would let me set up a laptop how I want it, and then quickly reproduce that setup on a different laptop without having to remember what I did. As far as I know, there's nothing out there that does this. Since the only way to find out is to spend hours writing it myself and then discover someone else way better than me has done it, I wrote a small Python script called <a href=https://github.com/jsf0/ansible-clone>ansible-clone</a> for this purpose.</p>

<p>It will detect all the installed packages on the system on which its running, find all the enabled services, and include the contents of any config files you provide it, and generate an Ansible playbook to duplicate this. The config files are provided by giving ansible-clone an INI file that looks something like this:</p>

<pre>
<code>
[spectrwm.conf]
path = /home/joe/.spectrwm.conf

[pf.conf]
path = /etc/pf.conf
</code>
</pre>

<p>The contents of these files will be placed in the playbook to be copied to those same paths when Ansible is run.</p>

<p>Putting it all together, you would do something like this:</p>

<pre>
<code>
$ ansible-clone -c configs.ini -f playbook.yml
</code>
</pre>

<p>The resulting file playbook.yml can then be copied to a different system, and you can run ansible-playbook on it to duplicate the system from which it came.</p>

<p>The script is super rough and a work in progress, but it produces valid yaml, which is proof that there is a God, because any yaml that is actually valid is to be considered a miraculous event. Currently it only supports FreeBSD and OpenBSD, but adding support for other operating systems is just a matter of adding in the proper package and service listing commands, and instructions are in the README if you want to hack on it. Eventually I'd like to have it support Linux too, but my priority right now is getting it working well on the BSDs.</p>

<p>The project is on <a href=https://github.com/jsf0/ansible-clone>Github</a> if you want to give it a try. Patches are welcome.</p>

        ]]>
        </description>
        <guid>http://kernelpanic.life/software/cloning-a-system-with-ansible.html</guid>
        <link>http://kernelpanic.life/software/cloning-a-system-with-ansible.html</link>
        <pubDate>Thu, 16 Feb 2023 05:00:00 GMT</pubDate>
    </item>


    <item>
	    <title>A Commented Arch Linux Setup on the 9th Gen X1 Carbon</title>
	      <description>
		      <![CDATA[

<h2>A Commented Arch Linux Setup on the 9th Gen X1 Carbon</h2>
<h3>19-May-2022</h3>

<p>I pulled out the X1 Carbon today for the first time in a while, and evidently I had put Arch Linux on it, though I can't remember when or why. This post will cover my setup on here and explain what is going on in each file, mainly so that if I ever do this again I can refer back to it. Hopefully others will find it useful too. If you are coming to this page from The Future, some of it may no longer be valid.</p>

<p>Nowadays I only install this using the archinstall script, depriving me of the joy of configuring my bootloader, generating locales, and lovingly creating precision-crafted partitions by hand. My loss I guess. Frankly, installing Arch manually is a waste of time, unless you either have weird requirements, or want to feel imperious about the affair.</p>

<p>I set up my network config in the Arch live system with iwctl, and archinstall helpfully copied it into the installed system, so I did not have to mess with it after boot. I chose btrfs for the filesystem, and full disk encryption. All of that is handled by archinstall.</p>

<p>I use slim as an X11 login manager. This will run my .xinitrc below:</p>

<pre>
<code>
xrdb ~/.Xresources
feh --bg-fill ~/pics/bg
( sleep 1s && bash ~/.start_lemonbar.sh | lemonbar -p -F#FFB8B8B8 B#000000 -f "Fira Code" -f FontAwesome) &
cwm
</code>
</pre>

<p>This file is simple. We'll load .Xresources, use feh to set the background, which is whatever image ~/pics/bg is, then start lemonbar using a script and throw it into the background. Then, launch cwm. I use cwm as a window manager because it's what I use in OpenBSD and I cannot be bothered to learn anything else. It's in the <a href="https://aur.archlinux.org/packages/cwm">AUR</a>. My ~/.cwmrc is below:</p>

<pre>
<code>
borderwidth 1

sticky yes

bind-key M-1 group-only-1
bind-key M-2 group-only-2
bind-key M-3 group-only-3
bind-key M-4 group-only-4
bind-key M-5 group-only-5
bind-key M-6 group-only-6

bind-key MS-1 window-movetogroup-1
bind-key MS-2 window-movetogroup-2
bind-key MS-3 window-movetogroup-3
bind-key MS-4 window-movetogroup-4
bind-key MS-5 window-movetogroup-5
bind-key MS-6 window-movetogroup-6

color activeborder rgb:cf/b5/3b
color inactiveborder rgb:cf/b5/3b
color menubg rgb:00/00/00
color menufg rgb:cf/cf/cf
color font rgb:cf/cf/cf
color selfont rgb:00/00/00

gap 75 00 00 00

# Uncomment this to set your terminal to terminator
#bind-key CM-Return "/usr/bin/terminator"

bind-key XF86MonBrightnessDown "/usr/bin/xbacklight -dec 10"
bind-key XF86MonBrightnessUp "/usr/bin/xbacklight -inc 10"

bind-key XF86AudioRaiseVolume "/usr/bin/pamixer -i 5"
bind-key XF86AudioLowerVolume "/usr/bin/pamixer -d 5"
bind-key XF86AudioMute "/usr/bin/pamixer -t"

bind-key CM-b "/usr/bin/firefox https://start.duckduckgo.com"
bind-key CM-z "/usr/bin/scrot '%m-%d_screenshot.png' -e 'mv $f ~/pics'"

bind-key CM-8 "/usr/bin/setxkbmap ru phonetic"
bind-key CM-9 "/usr/bin/setxkbmap us"

bind-key CM-h window-htile
bind-key CM-v window-vtile
</code>
</pre>

<p>This setup is pretty easy to use. It uses cwm's window groups to mimic virtual desktops. "C" is the Control key. "M" is the meta key, which is the Alt key on this ThinkPad. "S" is the shift key. So, Alt-1 puts you on desktop 1, Alt-2 puts you on desktop 2, etc. Alt+Shift+2 would send the current window to desktop 2.</p>

<p>For some reason, the keys for brightness, volume, etc do not work on Arch by default, though maybe  Iam doing something wrong. Instead of trying to fix that, I just mapped those keys to xbacklight and pamixer commands with the XF86 keybindings you see. It works.</p>

<p>Ctrl-Alt-b opens a browser (Firefox in this case). Ctrl-Alt-Return opens a terminal. If you uncomment the line defining this, it will use terminator. If you don't, cwm defaults to xterm. I use terminator, but left that line commented for this post, to protect anyone copying and pasting this blindly without having terminator installed.</p>

<p>The htile and vtile things at the bottom will mimic a tiling window manager, tiling your windows horiztontally or vertically with Ctrl-Alt-h or Ctrl-Alt-v respectively. As I type this, I realize that I hardly ever use this.</p>

<p>I'm using lemonbar to provide a bar to show some basic info. I don't really need much; a clock, my battery level, and volume will suffice. I found this lemonbar script on the internet somewhere, though I can't remember where. If it was yours, I appreciate it and thanks for sharing it. I lightly modified it to suit my needs:</p>

<pre>
<code>
#!/usr/bin/bash

Clock(){
	TIME=$(date "+%H:%M:%S")
	echo -e -n " \uf017 ${TIME}"
}

Cal() {
    DATE=$(date "+%a, %d %B %Y")
    echo -e -n "\uf073 ${DATE}"
}

ActiveWindow(){
	len=$(echo -n "$(xdotool getwindowfocus getwindowname)" | wc -m)
	max_len=70
	if [ "$len" -gt "$max_len" ];then
		echo -n "$(xdotool getwindowfocus getwindowname | cut -c 1-$max_len)..."
	else
		echo -n "$(xdotool getwindowfocus getwindowname)"
	fi
}

Battery() {
	BATTACPI=$(acpi --battery)
	BATPERC=$(echo $BATTACPI | cut -d, -f2 | tr -d '[:space:]')

	if [[ $BATTACPI == *"100%"* ]]
	then
		echo -e -n "\uf00c $BATPERC"
	elif [[ $BATTACPI == *"Discharging"* ]]
	then
		BATPERC=${BATPERC::-1}
		if [ $BATPERC -le "10" ]
		then
			echo -e -n "\uf244"
		elif [ $BATPERC -le "25" ]
		then
			echo -e -n "\uf243"
		elif [ $BATPERC -le "50" ]
		then
			echo -e -n "\uf242"
		elif [ $BATPERC -le "75" ]
		then
			echo -e -n "\uf241"
		elif [ $BATPERC -le "100" ]
		then
			echo -e -n "\uf240"
		fi
		echo -e "Batt: $BATPERC%"
	elif [[ $BATTACPI == *"Charging"* && $BATTACPI != *"100%"* ]]
	then
		echo -e "Batt: \uf0e7 $BATPERC"
	elif [[ $BATTACPI == *"Unknown"* ]]
	then
		echo -e "Batt: $BATPERC"
	fi
}

Wifi(){
	WIFISTR=$( iwconfig wlan0 | grep "Link" | sed 's/ //g' | sed 's/LinkQuality=//g' | sed 's/\/.*//g')
	if [ ! -z $WIFISTR ] ; then
		WIFISTR=$(( ${WIFISTR} * 100 / 70))
		ESSID=$(iwconfig wlan0 | grep ESSID | sed 's/ //g' | sed 's/.*://' | cut -d "\"" -f 2)
		if [ $WIFISTR -ge 1 ] ; then
			echo -e "\uf1eb ${ESSID} ${WIFISTR}%"
		fi
	fi
}

Sound(){
	NOTMUTED=$( pamixer --get-volume-human | grep -v "mute" )
	if [[ ! -z $NOTMUTED ]] ; then
		VOL=$(pamixer --get-volume-human)
		echo -e "Vol: \uf028 ${VOL}"
	else
		echo -e "Vol: \uf026 M"
	fi
}

while true; do
	echo -e " %{l}$(ActiveWindow) %{r}$(Wifi)  $(Battery)  $(Sound)  $(Clock) $(Cal)"
	sleep 0.1s
done
</code>
</pre>

<p>This is what that line in .xinitrc earlier will execute whenever X11 starts. All it does is show me my current window title, wifi SSID and signal strength, battery, volume, time, and date, all in a bar on top. The gap setting in .cwmrc ensures that this is not obscured by maximized windows.</p>

<p>Since this X1 Carbon has a 4k display, scaling becomes a problem at the default of 96 dpi. I have this set with a single line in ~/.Xresources, which is loaded when X11 starts by the xrdb command in .xinitrc above:</p>

<pre>
<code>
Xft.dpi: 323
</code>
</pre>

<p>That results in a usable size for my eyesight.</p>

<p>Video now works fine on kernel 5.17 without having to use the intelmedia driver, so the old problem of choppiness on the Intel Xe graphics has been solved. Suspend and resume work on this kernel too. There was something I had to do to get sound to work. I can't remember what I did, but it works now. You can probably figure it out.</p>

<p>That's about it for a usable setup.</p>

	]]>
	</description>
        <guid>http://kernelpanic.life/software/arch-linux-on-x1-carbon-gen9.html</guid>
        <link>http://kernelpanic.life/software/arch-linux-on-x1-carbon-gen9.html</link>
        <pubDate>Thu, 19 May 2022 05:00:00 GMT</pubDate>
    </item>

    <item>
       <title>OpenBSD on the 2020 M1 MacBook Air</title>
         <description>
                 <![CDATA[

<p><strong>Year:</strong> 2020</p>
<p><strong>CPU:</strong> 4 3.2 GHz Firestorm cores, 4 2.0 GHz Icestorm cores (arm64)</p>
<p><strong>Graphics:</strong> 7 core 1.28 GHz integrated Apple GPU</p>
<p><strong>RAM:</strong> 8 GB integrated 4266 MHz</p>
<p><strong>Storage:</strong> 256 GB integrated (yes this too) NVMe Apple AP0256</p>
<p><strong>"But can it run Chrome?":</strong> yes </p>
<p><a href="/hardware/m1-mba-dmesg.txt">dmesg</a></p>

<p>Because I hate myself, I buy Apple hardware solely to run OpenBSD on it. I was following the ongoing work to get OpenBSD running on Apple's new arm64 M1 SoCs and decided to give it a try on the 2020 M1 MacBook Air.</p>

<p>First, the Air itself. It's thin, it's not as lightweight as it looks, and it feels very well made. The 2560x1600 Retina display is very good. It includes "True Tone" technology according to Apple, which does...absolutely nothing as far as I can tell. It looks like every other Retina display. While it is crisp, and colors are accurate, it's noticeably behind the 9th Gen X1 Carbon's 4k HDR, and this is very apparent when they are side by side. Gone are the days when "Retina" meant you were getting the best display on the market. Now it's just better than almost all the displays out there.</p>

<p>The keyboard is bad. Typing feels like stabbing your fingers onto a plastic sheet laid over styrofoam. Internet-people told me this new "Magic" keyboard is a major improvement, and they are right in that the previous butterfly keyboards were even worse (remove the styrofoam and you have the butterfly experience). But travel is still too short and feedback is not really satisfying. At least the Air doesn't have the Touch bar like my previous MacBook Pro had, so you do get real function keys. Fumbling with a Touch bar to PXE boot a server over a duct-taped IPMI KVM connection might be a fun spectator sport, but it's not fun to be the participant.</p>

<p>Performance is where this starts to make sense. You get eight physical cores, four of which run at 3.2 GHz, while the other four run at 2.0 GHz. RAM is quick too, running at 4266 MHz and is integrated into the SoC. TDP for this whole thing is pretty low at 15 watts, so battery life is excellent, even though performance is faster than the i7-1165G7 in my X1 Carbon. It is also fanless, and thus completely silent with no coil whine either.</p>

<p>I didn't really play around much with macOS. Installing OpenBSD is fairly simple. From macOS, open a terminal and grab the <a href="https://alx.sh">Asahi Linux</a> installer and run it. This will resize your macOS installation to create free space, install a stub MacOS installation onto that, which will be used to load u-boot. The Asahi installer will offer to either install Asahi Linux automatically, or create just a UEFI partition here, onto which you can install OpenBSD. This is the option you want.</p>

<p>You do need to follow the Asahi installer's instructions regarding how to shut down and restart to finish the stub macOS setup. These things are, quite frankly, an absolute pain to dual boot once you understand what is actually going on. Fortunately the Asahi folks have done an admirable job sorting this out, and it works smoothly, though I don't really want to know how the sausage is made.</p>

<p>You'll need a USB with OpenBSD's arm64 miniroot dd'd to it. Once you get to the actual OpenBSD installation, it's familiar. You can choose "whole disk" during partitioning without harming your macOS installation. I thought briefly about adding an encrypted softraid partition for /home, but because of the macOS partitions, EFI gubbins, etc, there are a lot of partitions detected by the ramdisk, and disklabel won't let you make anymore. If you want to do some custom partitioning scheme, you might need to remove some of the OpenBSD default partitions to appease disklabel.</p>

<p>OpenBSD support once you have it installed is actually quite good considering how early this is as of 7.1. CPU frequency can be controlled with apmd, and will downclock to 600 MHz under battery power. Battery life is somewhere around 10 hours at full brightness, with wifi. Wifi itself on the Broadcom BCM4378 is supported by bwfm, and works very well, even offering AC speeds. Overall system performance, except for graphics, is extremely quick. I'm impressed.</p>

<p>There are some things that don't work yet. There is no GPU acceleration. Fortunately, the CPUs are fast enough that X11 still works well with sofware rendering. You will see some sluggishness scrolling in Chromium or Firefox though. Chromium performs miles ahead of Firefox in my testing, and I'm not exactly sure why. There's no way to control the display backlight brightness (as far as I know). Sound does not work, though playing a video in Chromium is so slow that it's not going to be a fun time anyway. There is no suspend or resume support.</p>

<p>It's usable for me as a daily driver right now, despite these drawbacks, but I don't ask for much, so your mileage may vary. The only graphical application I use is Chromium, which works well enough that I can do what I want to do, with the exception of YouTube. I did find some tweaks that made things nicer. The trackpad can be made more usable by setting it to tap-to-click. Just add this line to /etc/wsconsctl.conf:</p>

<pre><code>
mouse.tp.tapping=1,3,2
</code></pre>

<p>You may also want to increase the cursor speed, as it is rather slow in OpenBSD. xinput can do that, and I have the following in ~/.xsession:</p>

<pre><code>
xinput set-prop "/dev/wsmouse0" "Device Accel Constant Deceleration" 0.5
</code></pre>


<p>Scaling in X11 is at its best on this display at 2x, for my terrible eyes. I set this in ~/.xsession like so:</p>

<pre><code>
export GDK_SCALE=2.0
export QT_SCALE_FACTOR=2.0
</code></pre>

<p>That's all I have found necessary. Everything else works exactly as you would expect from OpenBSD. Many thanks to the Asahi team for putting together their installer, and to the OpenBSD devs for making it work on this hardware.</p>

        ]]>
        </description>
        <guid>http://kernelpanic.life/hardware/openbsd-m1-macbook-air.html</guid>
        <link>http://kernelpanic.life/hardware/openbsd-m1-macbook-air.html</link>
        <pubDate>Thu, 28 April 2022 05:00:00 GMT</pubDate>
    </item>


    <item>
       <title>Quieting a Supermicro E300-8D</title>
         <description>
		 <![CDATA[

<h2>Quieting a Supermicro E300-8D</h2>
<h3>21-April-2022</h3>

<p>I use a Supermicro E300-8D as a router/gateway, mainly for two reasons: it has IPMI, and its 2.2 GHz Xeon D-1518 can do gigabit NAT with OpenBSD without any trouble. The downside has always been noise. While it's not the vaccuum cleaner hum of a Sun T5220, or the ludicrous jet engine howl of a T1000, it is whiny, and even though it lives in the basement, I can hear it upstairs.</p>

<p>I had some Noctua NF-A4x20 fans sitting around from a failed attempt at quieting down that infernal T1000, so I replaced the E300's two fans with two of these. Installation could not be easier. Just take out the two fans, replace with the Noctuas, and plug them in. There is actually a space on the fan bracket for a third fan if you want, but I didn't bother.</p>

<p>Despite being probably too small and probably too wimpy, they work great. It is almost whisper quiet. I cranked up the CPU with 'apm -H', ran 'sha512 /dev/random', then promptly got distracted and forgot about it. About 30 minutes later, CPU temps were a steady 58 C, and both fans were at 5000 rpm.</p>

<p>If you're using one of these servers hard, maybe you would want a more powerful fan. But for router duties, I'm extremely happy with these Noctuas.</p>

        ]]>
        </description>
        <guid>http://kernelpanic.life/hardware/quieting-a-supermicro.html</guid>
        <link>http://kernelpanic.life/hardware/quieting-a-supermicro.html</link>
        <pubDate>Thu, 21 April 2022 05:00:00 GMT</pubDate>
    </item>

    <item>
      <title>The ThinkPad X1 Carbon 9th Gen, 8 Months Later</title>
        <description>
        <![CDATA[

<p>I've been using a <a href="/hardware/thinkpad-x1-carbon-gen9.html">pair of 9th Gen X1 Carbons</a> for roughly 8 months now. One of them was issued to me by my employer and has been running Linux. The other was one that I bought for myself, which runs OpenBSD. This will be my thoughts on these two after 8 months of daily use, and some of the progress and problems that I have seen in that span.</p>

<p>The work X1 has been running either Ubuntu 21.04 or Fedora 35, with the 5.10 series kernels for the bulk of that timeframe. It is currently running Fedora 35. Hardware support has been excellent and everything worked well, up to a couple weeks ago when the laptop stopped suspending when the lid is closed. As with most things with computers, it was working one day, I changed absolutely nothing, and it stopped working the next day with no obvious cause (yes, I know in reality I probably rebooted into a new kernel or something without remembering it). </p>

<p>The work laptop has seen much more use, and phyiscally is holding up fairly well. The keyboard is still great, and has no problems with keys binding, double pressing, or any other weirdness. The trackpoint and its buttons are working as expected, and the trackpoint tends to float a lot less than older ThinkPads I have used. The only thing that is giving me problems is the trackpad, which fairly early on developed a tendency to register a 3 finger press (i.e, middle button) when I was only using one finger. This had the irritating effect of closing tabs in Firefox when trying to select with a left click by tapping the touchpad, since that tap was recorded as a middle button press.</p>

<p>While hardcore Thinkpadders are doubtless readying to excoriate me for using the touchpad at all and not using the trackpoint exclusively, I do use the touchpad relatively often with the work laptop because it has the stock trackpoint cap, which is not my preference, and I do not have any more spare concave <a href="https://www.etsy.com/shop/SaotoTech">SaotoTech</a> caps. On my personal X1 with the concave cap, I just have the touchpad disabled completely. The touchpad on my personal X1 also works perfectly, likely because it has seen almost no use.</p>

<p>Battery life on both laptops has not seen any degradation. Both are reporting about 56.99 Wh at max capacity, out of a design capacity of 57 Wh, so these batteries are both at full capacity. The rubberized coating around the USB-C charging port on the work laptop is looking a bit scruffy, but the port is holding up fine and the cable still seats firmly in the USB-C slot even after a lot of use.</p>

<p>On the software side, OpenBSD support has improved tremendously on my X1 since I first got it. The main issues in May 2021 were crashy Intel graphics, no suspend/resume, and some flakiness with the iwx wireless card. As of right now, the laptop is running a -current snapshot from January 25th and these problems have been ironed out.</p>

<p>The Intel graphics are smooth and stable ever since OpenBSD's drm got synced with Linux 5.10.47 on July 6th 2021 (many thanks to jsg@ for the hard work here). I did find that Chromium based browsers have terrible screen tearing when scrolling on OpenBSD. My tried-and-true troubleshooting method of randomly flipping all the vaguely graphics-related switches that I don't fully understand in chrome://flags was unsuccessful. However, this is not a problem with Firefox, and my current setup in both OpenBSD and Linux is to use Firefox with gfx.webrender.all enabled and layers.acceleration.force-enabled set to true. This results in the smoothest browsing experience in all my experiments.</p>

<p>Lenovo introduced a BIOS update to add S3 style suspend/resume instead of just providing the brave new world of Intel Evo. Though this did not immediately fix it on OpenBSD, some additional work was done on this in OpenBSD last year and suspend/resume now work perfectly with the Linux-style suspend selected in the BIOS.</p>

<p>Lastly, the iwx driver has come a long way, and now even supports 40 MHz channels. Some speed testing at home shows this maxes at about 185 Mb/s with my Ubiquiti UAP-AC-PRO. It is also much more stable after some recent firmware changes. At the moment, this is the only BSD that supports the AX201 wireless card in this laptop. Work is being done in FreeBSD to port the Linux driver for this, but it is not yet complete. Keep an eye on <a href="https://bugs.freebsd.org/bugzilla/show_bug.cgi?id=244261">iwlwifi</a> in FreeBSD if you want to run FreeBSD on this laptop.</p>

<p>In summary, all the rough edges with this hardware in OpenBSD seem to be worked out. I only run -current, so I am not sure how many of these changes made it in the 7.0 release or not. If you run -stable, you would very likely have very good support in 7.1 whenever that is released. I would even venture to say the X1 works better in OpenBSD -current right now than it does in Linux at this point, since at least suspend and resume work. I'm still trying to find a solution for that on Fedora 35 with the work laptop.</p>


        ]]>
        </description>
        <guid>http://kernelpanic.life/hardware/thinkpad-x1-carbon-8-month-review.html</guid>
        <link>http://kernelpanic.life/hardware/thinkpad-x1-carbon-8-month-review.html</link>
        <pubDate>Thu, 27 Jan 2022 05:00:00 GMT</pubDate>
    </item>


    <item>
      <title>OpenBSD on the HiFive Unmatched</title>
        <description>
        <![CDATA[
<h2>OpenBSD on the HiFive Unmatched</h2>
<h3>23-Oct-2021</h3>

<img src="/img/hifive-unmatched-openbsd-7.0.jpg" alt="The HiFive Unmatched">

<p><strong>Year:</strong> 2021</p>
<p><strong>CPU:</strong> 4 core, 1200 MHz SiFive Freedom U740 64 bit RISC-V</p>
<p><strong>Graphics:</strong> AMD Radeon R9 270 2 GB</p>
<p><strong>RAM:</strong> 16 GB</p>
<p><strong>Storage:</strong> 512 GB Western Digital SN730 NVMe</p>
<p><strong>"But can it run Chrome?":</strong> No </p>
<p><a href="/hardware/dmesg-hifive-unmatched-openbsd-7.0-current.txt">dmesg</a></p>

<p>My desktop's power supply died, and rather than replace the ill-fated PSU I decided to go with something different. OpenBSD's new <a href=https://www.openbsd.org/riscv64.html">riscv64</a> port looked interesting, so I got a <a href="https://www.sifive.com/boards/hifive-unmatched">HiFive Unmatched</a> to see how it would work as an OpenBSD desktop.</p>

<p>The HiFive Unmatched provides a quad core, 1200 MHz, 64 bit RISC-V SoC in a mini-ITX form factor. It has a plentiful 16 GB of RAM, and supports a M.2 2280 NVMe drive. It also has a full length PCI-e slot, though it is internally only an 8 lane slot. This means that unlike some other development boards, this is well-equipped to serve as a desktop replacement, if you are willing to deal with some quirks.</p>

<p>For this build, I went with a <a href="https://www.newegg.com/silver-metallic-gear-neo-mini-v2-series-mini-itx-tower/p/N82E16811700001?Description=metallic%20gear%20neo%20mini&cm_re=metallic_gear%20neo%20mini-_-11-700-001-_-Product">Metallic Gear Neo Mini V2</a> mini-ITX case, an EVGA 850w Gold PSU scavenged from an old build, and an AMD R9 270 GPU. You definitely don't need an 850w PSU; I just happened to have one.</p>

<p>The case is quite nice, and though it has little room for extra cables, it does fit a full length GPU comfortably and has adequate airflow. The Unmatched does not require much power, nor does it run hot, so the cooling provided by the case's included 120mm intake fan and a 140mm exhaust fan I pulled off an older machine is more than enough. The Unmatched comes with a small, but busy 25mm CPU fan that is just loud enough to be irritating. Some searching shows that folks have replaced this with a 40mm Noctua to reduce noise, and depending on how annoyed I get, I may do this in the future. Temps from the two sensors exposed to sysctl have been about 34-35 Celsius, so cooling is not a problem in this case.</p>

<p>I used OpenBSD 7.0 for this install and simply following the instructions worked fine. There is little difference in the installation process apart from the presence of an SD card. The Unmatched comes with a micro SD card preloaded with u-boot and a small Linux system with XFCE4. This SD card must be inserted while booting the system from a USB or NVMe drive because it will boot the SD first, then load the OpenBSD bootloader. There are some DIP switches on the board that can override the boot order, but by default they are setup to boot the SD card first and I was not adventurous enough to change this.</p>

<p>The version of the <a href="https://github.com/sifive/freedom-u-sdk">SiFive Freedom U SDK</a> that the included SD card came with was 2021.03.00 and I had some trouble connecting to the serial console from OpenBSD. I decided to update this to version 2021.09.00. I wanted to keep the provided SD card as a backup though, so flagrantly ignoring the warnings in SiFive's documentation about SD card compatibility, I tried a variety of micro SD cards I had sitting around, and unsurprisingly none of them worked. The board is very picky about which SD cards it will boot, and my Samsung EVO and other random cards did not make the cut. I ended up just flashing the new image over the included SD card and the serial console worked after that.</p>

<p>I tried a couple GPUs with OpenBSD. An RX 5700XT and an RX 460 did not work with amdgpu. The R9 270 works great with radeondrm though, and is capable of driving a 4k display. X11 runs smoothly with this setup and has been quite stable. The built-in Linux distro on the SD card did work with the RX 460, though I did not try with the 5700XT.</p>

<p>The onboard Cadence ethernet controller is supported by cad(4), but it is not currently reliable and you are advised to use a USB ethernet adapter, or USB wireless. I gave the onboard ethernet a try, and it did not work. I'm using an Atheros AR9271 USB wireless adapter and it works fine. My usual go-to USB, a Buffalo WLI-UC-GNM supported by run(4), had errors trying to load the firmware on this board.</p>

<p>Performance of the 4 1200MHz cores is capable, if not overwhelming. It feels significantly faster than a Pinebook Pro running OpenBSD, but the Pinebook Pro currently does not have GPU acceleration on OpenBSD, so the Unmatched has a huge advantage here. Having NVMe storage is a real benefit too, and the system does not feel sluggish at all.</p>

<p>Package selection is still rather limited for riscv64, so you may not find what you want. It's not much worse than macppc however. Webkit based browsers such as Midori and Surf are the only javascript-capable web browsers available at this time, but I am using Netsurf, which is my favorite browser anyway. It does all I need from a browser and is quite fast. The webkit browsers do function, though much slower.</p>

<p>As this is a very new port of OpenBSD, support is not complete and bugs can be expected. I foolishly decided to enable soft updates just to see what would happen, and what happened was that it immediately experienced a lockup. I believe it's related, though it is hard to prove and I could not get any debugging info as the thing was locked up solid. This has not happened again since disabling soft updates. It later also had trouble relinking the kernel and left the system with a borked MP kernel. I ended up booting to the single processor kernel and downloading the MP kernel again off a mirror to replace it. If you are reading this from The Future, these bugs may have been ironed out.</p>

<p>I don't have many complaints apart from the noisy CPU fan and an IO shield that was absurdly frustrating to install. It's remarkable how well this runs on OpenBSD already given the short amount of time the riscv64 port has been in development, and the devs have my thanks for putting in the work here.</p>

        ]]>
        </description>
        <guid>http://kernelpanic.life/hardware/hifive-unmatched.html</guid>
        <link>http://kernelpanic.life/hardware/hifive-unmatched.html</link>
        <pubDate>Sat, 23 Oct 2021 05:00:00 GMT</pubDate>
    </item>

    <item>
      <title>OpenBSD Compile Time Comparison</title>
        <description>
        <![CDATA[
<p>A recent <a href=https://portal.mozz.us/gemini/thfr.info/openbsd/Compile-Time-Comparison-Oct-2021/>post</a> by thfr@ compared the compilation time of godot between several different systems. I thought the idea was interesting, so I decided to compare the compile time of OpenBSD's userland on 3 ThinkPads: a 9th Gen X1 Carbon, a T14 AMD, and a T470p.</p>

<p>Relevant specs of the test machines are below:</p>
<ul>
	<li><strong>X1 Carbon:</strong> 4 core, 8 thread i7-1165G7, 16G RAM, 256G Toshiba KXG6AZNV256G NVMe SSD</li>
	<li><strong>T14 AMD:</strong> 8 core, 16 thread, AMD 4750U, 16G RAM, 512G Samsung MZVLB512 NVMe SSD</li>
	<li><strong>T470p:</strong> 4 core i5-7300HQ, 16G RAM, 1TB WD Blue WDS100T2B0A SATA SSD</li>
</ul>

<p>All of these were running OpenBSD 7.0 and the test was to compile a -current userland from source taken on Octboer 15, 2021. All the machines were running with apm set to maximum performance (-H), and were on the same wooden desk with ambient temperature of 72 degrees Fahrenheit. Test parameters and results are below:</p>

<p>SMT disabled</p>
<pre><code># time make -j4 build</code></pre>
<ul>
	<li><strong>T14 AMD:</strong> 102m00.53s real   307m41.15s user    50m14.75s system</li>
	<li><strong>T470p:</strong> 118m05.43s real   350m06.74s user    47m24.35s system</li>
	<li><strong>X1 Carbon:</strong> 118m52.04s real   344m04.21s user    56m10.47s system</li>
</ul>

<p>With 4 jobs, the T14 came out on top, but interestingly the nearly brand new X1 was beaten by the much older i5-7300HQ in the T470p. The T470p has a substantially better cooling setup due to its higher TDP, and is a thicker and heavier laptop. If the X1 was throttling due to heat, this could explain the difference here. Since the i7-1165G7 in the X1 supports hyperthreading whereas the i5-7300HQ in the T470p does not, I was curious if SMT would improve things on the X1:</p>

<p>SMT enabled</p>
<pre><code># time make -j8 build</code></pre>
<ul>
	<li><strong>X1 Carbon:</strong> 116m16.38s real   601m13.06s user   141m22.17s system</li>
</ul>

<p>SMT made a very slight difference, shortening the build time by 2 minutes, but this is hardly a dramatic improvement. Next, I wanted to see if giving make 8 jobs and hopefully using all 8 physical cores on the T14's Ryzen 4750U would make a difference:</p>

<p>SMT still disabled</p>
<pre><code># make -j8 build</code></pre>
<ul>
	<li><strong>T14 AMD:</strong> 79m39.31s real   388m05.55s user   108m43.00s system</li>
</ul>

<p>It did. We saved about 23 minutes with -j8 as opposed to -j4 on the 8 core 4750U. What if we enable SMT and throw 16 jobs at it?</p>

<p>SMT enabled</p>
<pre><code># make -j16 build</code></pre>
<ul>
	<li><strong>T14 AMD:</strong> 80m06.85s real   620m42.05s user   315m44.07s system</li>
</ul>

<p>No real difference, and we even lost about 30 seconds.</p>

<p>It's interesting that the i5-7300HQ in a T470p mildly beat the newer i7-1165G7 despite the i7 having better benchmark figures in Geekbench, Passmark, and some other tests and having much faster NVMe storage than the SATA drive in the T470p. The case and heatsink design of the T470p seems to be the difference here, as it has much more generous cooling than the tightly packed X1 Carbon. Granted, the i7-1165G7 needed 30 fewer watts to match the older i5's performance.</p>

<p>Adding physical cores buys the best performance boost for this task, saving 23 minutes when all 8 cores were used on the 4750U. SMT only made a very mild difference with the i7-1165G7, shaving 2 minutes off the build, and it made no difference with the AMD 4750U, even increasing the time very slightly. I'm not sure if this lack of improvement has to do with OpenBSD specifically, or this specific workload.</p>

<p>Final takeaway: LLVM is gargantuan. I'd guess 85% of the time was spent just building that.</p>
        ]]>
        </description>
        <guid>http://kernelpanic.life/hardware/openbsd-compile-time-comparison.html</guid>
        <link>http://kernelpanic.life/hardware/openbsd-compile-time-comparison.html</link>
        <pubDate>Fri, 15 Oct 2021 05:00:00 GMT</pubDate>
    </item>

    <item>
      <title>A Week with an AlphaStation: The Old Computer Challenge</title>
        <description>
        <![CDATA[
<p>The week is over, so here are some closing thoughts on the <a href="https://dataswamp.org/~solene/2021-07-07-old-computer-challenge.html">Old Computer Challenge</a>. Part 1 is <a href="/misc/old-computer-challenge-and-why-i-need-it.html">here</a></p>

<p>I spent the past week using nothing but a <a href="/hardware/dec-alphastation-250.html">DEC AlphaStation</a> and the experience was interesting and mostly enjoyable. This particular AlphaStation runs OpenBSD -current, which lacks X11 support on alpha, so I use a VT220 terminal with it. It has 128 MB of RAM, and a 266 MHz Alpha-based DECchip 21030 CPU. Support is pretty good in OpenBSD besides the lack of X11, but I quite like the VT220 and would probably not run X11 even if I could.</p>

<p>The first thing that became noticeable was the noise. I put a 4.5 GB IBM 7200 RPM HDD in this to replace its original Seagate that was on its last legs. While this is quieter than that Seagate (which probably had a bad bearing), it is too loud to leave on if I want to actually sleep. That meant I had to power it down at the end of the day, but there's a problem with that.</p>

<p>A feature in OpenBSD called KARL relinks the kernel on every boot. With only 128 MB of RAM, this would exhaust the AlphaStation's available RAM and swap to disk. Every boot would take about 15 minutes for this process to complete before the machine was usable. These machines can support up to 256 MB of RAM from what I have read, and I suspect this would speed up KARL considerably. I actually do have another 128 MB of RAM sitting in a drawer for it, but have not installed it because there is very little room in between the RAM slots in which to work and I was afraid of breaking the RAM that was already in there, or damaging a slot. My routine for the week was to power it on in the morning, go make a coffee, and check back later.</p>

<p>I started off by using lynx for web browsing, but then came across retawq, compiled that from ports, and have not looked back. I never thought of lynx as slow or bloated, but retawq on the AlphaStation is significantly faster and uses several MB less RAM. It also allows you to split the retawq session in the terminal a bit like tmux, so you can effectively have two sites open. Previously I would use lynx in a tmux session for this, but retawq saves some RAM while doing so, and is a lot faster.</p>

<p>There were some annoyances. For some reason, the backspace key did not work in retawq but does in lynx. My workaround was to use the "Remove" key, which behaves like the "Delete" key and gets the job done. I suspect this is due to OpenBSD not actually using the LK402-AA keyboard layout, so quite a few keys do not behave as expected. I never did figure out how to change the layout to support this keyboard, or if its even possible for the LK402.</p>

<p>I was pleased whenever I found sites that rendered well in lynx or retawq and I really hope that more people pay attention to such things when setting up a site. It is quite easy to read and stay focused in a terminal browser, especially on a VT220 where splitting the terminal to jump to a new site (the equivalent of a new tab) sacrifices quite a bit of usable display area.</p>

<p>I did miss git, and this challenge exposed my reliance on it. I don't particularly like git, but it's convenient because lots of other people use it. I ended up SSH'ing to a different machine to clone or update a repo, then SFTP'd it to the AlphaStation. This could all be avoided by just using CVS in the base system, but my code is all in git repos and I didn't have time to change them over. I will have to explore this in the future.</p>

<p>Frankly I did not miss any other software. On modern computers, the only graphical application I use is a web browser. Everything else is a CLI application anyway, so switching to a VT220 for a week was not a shock or a hindrance, beyond the obvious web browsing differences. My normal development environment is just vi, so there was no real difference there apart from having ot use Ctrl-[ instead of ESC due to the aforementioned keyboard layout issues.</p>

<p>Most importantly, I found that I wasted much less time. Instead of mindlessly web browsing, I browsed purposefully. Since the machine is quite noisy, I used it less often. I spent more time reading, purged some old stuff that had been sitting around for far too long, and changed the oil in my truck, which I had been putting off.</p>

<p>Yes, I know. These are no great feats of human achievement. Yet it's actually not an exaggeration to say that I would not have done these things had I been using a modern computer. The amount of times I went to reach for my X1 and stopped myself was rather embarrassing. I apparently spend way too much time just mindlessly flicking between websites and tasks, and during the challenge, all of this extra time opened up because doing so on the AlphaStation was painful or impossible. This time wasting is something I really ought to reign in, and I am glad to be aware of it.</p>

<p>I did not use Reddit, which was probably a good thing for my sanity. I did not miss Youtube. And while I don't use Twitter, it was blissful to be unaware of whatever the perpetually outraged Twitter mob is outraged about now, due to lack of embedded tweets in lynx and retawq.</p>

<p>Overall, it was worth doing, and exposed some things that I need to improve in myself. I think it could be healthy to use this machine much more often and regulate my time spent on modern computers moving forward.</p>
        ]]>
        </description>
        <guid>http://kernelpanic.life/misc/week-with-an-alphastation.html</guid>
        <link>http://kernelpanic.life/misc/week-with-an-alphastation.html</link>
        <pubDate>Fri, 16 Jul 2021 05:00:00 GMT</pubDate>
    </item>


    <item>
      <title>The Old Computer Challenge and Why I Need It</title>
        <description>
        <![CDATA[
<p>This will be a weird post. I don't know if anyone else has thought this way, and I could be completely alone in here, but here goes.</p>

<p>Over the last year or so, I have become more and more aware of a growing impatience in myself. I have difficulty focusing on things that take a long time, and the amount of time I can remain attentive to just one thing has dropped considerably. I find it difficult to stand in line, to wait for things to arrive in the mail, to watch movies, or do anything that does not offer either the possibility of immediate results or the opportunity for distraction.</p>

<p>I think one of the reasons for this is that there is always something available that my brain believes is more interesting than what I am doing now, and the cost for this mental context switching is zero. With a modern device and good wifi, I can flick between thoughts instantly. I notice this most acutely when trying to read and actually finish books. When reading, I often race between ideas, and will only get through a page or two at a time before feeling an urge to look something up in response to them. This is a new problem for me. I never had this much difficulty just finishing a book when I was younger.</p>

<p>That wouldn't be so bad if the story stopped there, but the situation is much worse than that. I have also seen an increased self-centeredness and a desire to be praised, admired, or even just noticed. I cannot point to a time when this started, but I do remember a stark moment when I realized that nearly all of my interaction on various tech-based forums and similar social media sites had my own ego as the driving factor.</p>

<p>It's interesting how subtly this vice can happen. Instead of being helpful, I wanted to be thought of as helpful. Instead of sharing knowledge, I wanted to be admired as knowledgeable. Instead of being praiseworthy, I wanted praise. It may be tempting to say that none of these things are bad. But improper elevation of a lesser good over a higher good can lead to something that is not good at all. In my case, I became (and still am) unhealthily sensitive to negative criticism, too dependent on positive affirmation from others, and refreshed far too many pages watching upvotes/likes/etc than was good for me.</p>

<p>I do think that modern technology is related to both of these flaws in me, though the relationship is not quite clear. I don't remember them being this bad until the internet was both pervasive and easy. Yes, it's fashionable in our society to blame technology for our character defects, and I realize this is how this post may sound. But I think it would be more accurate to blame our character defects for the technology we build.</p>

<p>It's impatience that makes me want a faster laptop. It's a desire for self-promotion and egocentrism that enables much of social media to exist, for whatever good may accidentally come of it. We use terms like "followers" to refer to online communities sort of gathered around our online persona, which previously would have been a term used almost exclusively in reference to a religious community gathered around a leader or set of beliefs.</p>

<p>These two concerns have made me often think about what would happen if I just used an old computer. What if the time cost of each interaction with a device was higher? Would I use it less often and more deliberately? There is only one way to find out, which is why I have decided to take part in an Old Computer Challenge <a href="https://dataswamp.org/~solene/2021-07-07-old-computer-challenge.html">proposed by Solene Rapenne</a>.</p>

<p>The rules are simple: outside of work, use something with 1 core and 512 MB of RAM or less, from 10-July to 17-July. I will be using a <a href="/hardware/dec-alphastation-250.html">DEC AlphaStation</a> and nothing else for the duration of this week, and will do a follow up with my thoughts at the end of that time. If you're interested, why not give it a try too?</p>
        ]]>
        </description>
        <guid>http://kernelpanic.life/misc/old-computer-challenge-and-why-i-need-it.html</guid>
        <link>http://kernelpanic.life/misc/old-computer-challenge-and-why-i-need-it.html</link>
        <pubDate>Thu, 08 Jul 2021 05:00:00 GMT</pubDate>
    </item>

    <item>
      <title>High Availability In Practice With OpenBSD</title>
        <description>
        <![CDATA[
<h2>High Availability In Practice With OpenBSD</h2>
<h3>24-June-2021</h3>

<p><a href="http://kernelpanic.life/software/high-availability-with-openbgpd-on-openbsd.html">Previously</a> I talked about setting up OpenBGPD on OpenBSD to provide high availability by taking advantage of <a href="https://www.vultr.com">Vultr's</a> BGP feature and reserved IPs. This post will cover some practical considerations to bear in mind when doing so, and some of the ways I have dealt with various problems posed by this setup. This is not a how-to guide for a full setup of any of these ideas; it's just enough to get you started.</p>

<p>The first issue is that SSH will listen on all IP addresses, because the default setting for "ListenAddress" is "0.0.0.0". This means SSH is going to listen on the BGP-announced floating IP. While this is not necessarily harmful because it is no less secure than SSH listening on any other port, you will have a problem when you try to SSH to your domain when the A record is set to the floating IP. The connection will be routed via anycast with ECMP, so you could be connecting to any of your instances, but you don't control which one. The next time you connect, you will likely get sent to a different instance, which will cause the host key verification to complain that the key has changed.</p>

<p>Instead, use your local ~/.ssh/config file to make connections to each host easier to manage. I only have SSH listening on each instance's assigned public IP, and have something like this in my client's ~/.ssh/config file:</p>

<pre>
<code>
Host kp1
	Hostname 1.2.3.4
	IdentityFile ~/.ssh/id_ecdsa
	User joe
	Port 4000
Host kp2
	Hostname 5.6.7.8
	IdentityFile ~/.ssh/id_ecdsa
	User joe
	Port 4000
</code>
</pre>

<p>I can just add a new block if I add a new instance to the cluster.</p>

<p>The next issue is to keep all website files in sync. As mentioned previously, I keep the files for this site in a Github <a href="https://github.com/jsf0/kernelpanic.life">repo</a>. httpd's root directory of /var/www/htdocs/kernelpanic.life is just that repo. If I add a post or make any changes, I push to Github, and then SSH to the instances and broadcast a "git pull" to all of them to pull the newest changes from Github. There's also a line in /etc/daily.local on each instance to do a git pull in case I forget or don't want to make changes live right now, but don't want to forget either.</p>

<p>A tricky problem is handling Let's Encrypt TLS certificates and their renewals. Simply running acme-client with HTTP-01 challenges works great for a regular httpd setup. An overly simplified version of HTTP-01 is this: Let's Encrypt hands you a token, acme-client puts a file containing that token and a fingerprint of your key in your /.well-known/acme-challenge/ location served by your web server. Let's Encrypt can then verify to make sure it's there, and if so, your validation is successful.</p>

<p>The anycast setup breaks this, because when Let's Encrypt looks for that file, it obviously needs to be sent to the same instance that initiated the validation request, and this is not guaranteed with ECMP routing. If you are using BGP prepends to have a primary and a backup pair of servers, you could get around this by doing the ACME challenge on the primary and then syncing its certs to the backup. This doesn't really work with ECMP though.</p>

<p>Instead I created another server that handles TLS creation and renewal with <a href="https://github.com/acmesh-official/acme.sh">acme.sh</a> using DNS-01 authentication. DNS-01 uses the creation of a DNS TXT record to prove you own the domain, which acme.sh can automate for a number of DNS providers. In my case, I'm using Vultr's DNS service, so acme.sh will use the Vultr API to edit DNS records and add the challenge TXT record. I created a sub-user on my Vultr account that only has DNS privileges, and I'm using that sub-user's API key. That key is further restricted to just the IP address of the ACME instance. A line like this in /etc/monthly.local renews the certs every month:</p>

<pre><code>acme.sh --renew --force --dns dns_vultr -d kernelpanic.life --standalone</code></pre>

<p>The advantage of using DNS-01 is that the instance adding the DNS records doesn't have to be part of the cluster and doesn't need the domain pointing to its IP. Each instance in the cluster will then SCP to this instance and copy the cert and key to their proper local locations. This is also automated on them with /etc/monthly.local</p>

<p>Doing it this way makes it easy to add new servers to the cluster, because the certs are handled centrally, so getting them onto a new instance and keeping them all in sync is simple. There is a single point of failure here if the acme.sh server goes down, as the certs will not get renewed and/or nothing in the cluster will be able to get them. But there is enough time before expiration that I could fix anything that goes awry, or just deploy a new acme.sh instance from a snapshot if necessary.</p>

<p>The last hurdle is logging. Visitor logs to the site are spread across the /var/www/logs/access.log files on each of the instances. If I wanted to see where traffic was coming from, or whether there was a problem with one of the web servers, I would have to SSH into each instance. This doesn't scale well.</p>

<p>One obvious way to handle this is to make a new instance to act as a log collector and have a line in /etc/weekly.local on each instance to SCP their logs to it. Another way would be to use some sort of object storage solution, like Amazon S3 or Vultr Object Storage, and do essentially the same thing, but send the logs to the storage service with s4cmd or similar. I haven't cared anough about checking logs to do either of these at the moment. I am aware that this is shortsighted.</p>
        ]]>
        </description>
        <guid>http://kernelpanic.life/software/high-availability-in-practice-with-openbsd.html</guid>
        <link>http://kernelpanic.life/software/high-availability-in-practice-with-openbsd.html</link>
        <pubDate>Thu, 24 Jun 2021 05:00:00 GMT</pubDate>
    </item>

    <item>
      <title>High Availability With OpenBGPD on OpenBSD 6.9</title>
        <description>
        <![CDATA[
<h2>High Availability With OpenBGPD on OpenBSD 6.9</h2>
<h3>19-June-2021</h3>

<p>Before beginning, it is important to note that this post does not replace any documentation. My setup below is the minimum necessary to get this going, but there are a lot of factors I won't cover. Check the latest docs, especially if you are reading this long in The Future.</p>

<p>I host this site on <a href="https://www.vultr.com">Vultr</a> and one of the platform's features is BGP, which can be used with a floating IP address to achieve better availability. The basic idea is to have multiple identical instances announcing the same floating IP to Vultr's infrastructure via BGP, and have your service configured on each and listening on that floating IP. Vultr will route traffic via anycast to that announced floating IP. If one or more instances go down, traffic will continue flowing to the other instances still announcing it, ensuring that your service remains available.</p>

<p>If you have your own IP space (/24 minimum) and ASN, you can announce your IP(s) from different datacenters, so even if an entire datacenter is down, your service will still be reachable. If you do not have your own IP address block and ASN, you can request an ASN from Vultr and use a Vultr reserved IP as your floating IP. Doing it this way will only work for instances within the same datacenter, but still provides redundancy should one or more of your instances go dark. One immediate advantage is that this allows you to upgrade and reboot an instance without disrupting reachability.</p>

<p>Vultr has an excellent <a href="https://www.vultr.com/docs/high-availability-on-vultr-with-floating-ip-and-bgp">guide</a> for doing this with Linux using BIRD 1.6. It is worth reading in full, even if you are not using Linux or BIRD. If you want though, you can use BIRD on OpenBSD pretty much exactly as in that guide, though obviously using ifconfig instead of the Linux ip commands to setup the interfaces, and using lo1 instead of dummy1. This post will focus on OpenBGPD because it is in the base system, but I have used BIRD on OpenBSD to accomplish this and it works fine.</p>

<p>To get started, open a ticket with Vultr and request that private BGP be enabled for your account. Once that is done, you can click on any instance and then click on the BGP tab to see your ASN and password. You'll also need a <a href="https://www.vultr.com/docs/vultr-reserved-ips">reserved IP</a> in the same region as the instances you want to use to announce it. This IP should not be attached to any instance; just reserve it and leave it.</p>

<p>Whether you are using BIRD or OpenBGPD, on OpenBSD it is necessary to enable IP forwarding for this setup to work:</p>

<pre><code>
# sysctl net.inet.ip.forwarding=1
</code></pre>

<p>This can be enabled on boot by placing the following line in /etc/sysctl.conf</p>

<pre><code>
net.inet.ip.forwarding=1
</code></pre>

<p>For this example, we'll pretend that 8.9.8.9/32 is the reserved IP we'll be announcing. Create a new loopback interface and give it that IP:</p>

<pre><code>
# ifconfig lo1 create
# ifconfig lo1 inet 8.9.8.9/32
# ifconfig lo1 up
</code></pre>

<p>Test by trying to ping 8.9.8.9 from the same instance, which should work. Make this persistent by creating /etc/hostname.lo1 with the following:</p>

<pre><code>
inet 8.9.8.9/32
up
</code></pre>

<p>I took the example bgpd.conf file from /etc/examples and modified it slightly. While the file is verbose, most of the options here don't need to be changed for a very simple setup like this. The full config I'm running can be found below:</p>

<pre><code>
# define our own ASN as a macro
# This ASN is an example; yours will be found in the BGP tab of any Vultr instance
ASN="4000000000"

# Password assigned to your account to use with Vultr neighbor, also found on the BGP tab
PASSWORD="hunter2"

# public IP of this particular instance
INSTANCE_IP="1.2.3.4"

# reserved IP that each instance will announce
FLOATING_IP="8.9.8.9/32"

# global configuration
AS $ASN
router-id $INSTANCE_IP

# list of networks that may be originated by our ASN
prefix-set mynetworks {
	$FLOATING_IP
}

include "/var/db/rpki-client/openbgpd"

# define bogon prefixes which should not be part of the DFZ
prefix-set bogons {
	0.0.0.0/8 or-longer		# 'this' network [RFC1122]
	10.0.0.0/8 or-longer		# private space [RFC1918]
	100.64.0.0/10 or-longer		# CGN Shared [RFC6598]
	127.0.0.0/8 or-longer		# localhost [RFC1122]
	169.254.0.0/16 or-longer	# link local [RFC3927]
	172.16.0.0/12 or-longer		# private space [RFC1918]
	192.0.2.0/24 or-longer		# TEST-NET-1 [RFC5737]
	192.88.99.0/24 or-longer	# 6to4 anycast relay [RFC7526]
	192.168.0.0/16 or-longer	# private space [RFC1918]
	198.18.0.0/15 or-longer		# benchmarking [RFC2544]
	198.51.100.0/24 or-longer	# TEST-NET-2 [RFC5737]
	203.0.113.0/24 or-longer	# TEST-NET-3 [RFC5737]
	224.0.0.0/4 or-longer		# multicast
	240.0.0.0/4 or-longer		# reserved for future use
	::/8 or-longer			# RFC 4291 IPv4-compatible, loopback, et al
	0100::/64 or-longer		# Discard-Only [RFC6666]
	2001:2::/48 or-longer		# BMWG [RFC5180]
	2001:10::/28 or-longer		# ORCHID [RFC4843]
	2001:db8::/32 or-longer		# docu range [RFC3849]
	2002::/16 or-longer		# 6to4 anycast relay [RFC7526]
	3ffe::/16 or-longer		# old 6bone
	fc00::/7 or-longer		# unique local unicast
	fe80::/10 or-longer		# link local unicast
	fec0::/10 or-longer		# old site local unicast
	ff00::/8 or-longer		# multicast
}

# Generate routes for the networks our ASN will originate.
# The communities (read 'tags') are later used to match on what
# is announced to EBGP neighbors
network prefix-set mynetworks set large-community $ASN:1:1

# upstream providers
group "upstreams" {
	neighbor 169.254.169.254 {
		remote-as 64515
		descr "Vultr"
		announce IPv4 unicast
		tcp md5sig password $PASSWORD
		multihop 2
		local-address $INSTANCE_IP
	}
}

### for simple BGP setups, no editing below this line is required ###

# Outbound EBGP: only allow self originated networks to ebgp peers
# Don't leak any routes from upstream or peering sessions. This is done
# by checking for routes that are tagged with the large-community $ASN:1:1
allow to ebgp prefix-set mynetworks large-community $ASN:1:1

# deny more-specifics of our own originated prefixes
deny quick from ebgp prefix-set mynetworks or-longer

# IBGP: allow all updates to and from our IBGP neighbors
allow from ibgp
allow to ibgp

# Scrub normal and large communities relevant to our ASN from EBGP neighbors
# https://tools.ietf.org/html/rfc7454#section-11
match from ebgp set { large-community delete $ASN:*:* }

# filter out prefixes longer than 24 or shorter than 8 bits for IPv4
# and longer than 48 or shorter than 16 bits for IPv6.
allow from any inet prefixlen 8 - 24
allow from any inet6 prefixlen 16 - 48

# Honor requests to gracefully shutdown BGP sessions
# https://tools.ietf.org/html/rfc8326
match from any community GRACEFUL_SHUTDOWN set { localpref 0 }

deny quick from any prefix-set bogons

# deny RPKI invalid, built by rpki-client(8), see root crontab
deny quick from ebgp ovs invalid

# filter bogon AS numbers
# AS_TRANS (23456) is not supposed to show up in any path and indicates a
# misconfiguration. Additionally Private or Reserved ASNs have no place in
# the public DFZ. https://www.iana.org/assignments/as-numbers/as-numbers.xhtml
deny quick from any AS 23456
deny quick from any AS 64496 - 131071
deny quick from any AS 4200000000 - 4294967295

# filter out too long paths
deny from any max-as-len 100
</code></pre>

<p>There is quite a lot to this file, but the comments explain what is going on. The ASN is your private ASN found on the BGP tab of your instance. The password (hunter2 in this example) will be found there as well. INSTANCE_IP should be changed on each instance that will be part of this group. The FLOATING_IP will remain the same on all instances, because we want everything announcing one IP address.</p>

<p>We're only announcing that floating IP, and our only neighbor is Vultr. The neighbor section will configure that session with our password. The rest of the file is essentially just the default rules, which filter some incorrect ASNs and prefixes. You could get more or less aggressive here if you like. I'm just leaving it as-is.</p>

<p>It's a good idea to test this file for validity:</p>

<pre><code>
# bgpd -n
</code></pre>

<p>If the file's syntax is good, you can enable bgpd and start it:</p>

<pre><code>
# rcctl enable bgpd
# rcctl start bgpd
</code></pre>

<p>You can use bgpctl to view information about your session. There are a lot of things it can do, but I like to do a quick check to see if everything looks correct and that we have a session:</p>

<pre><code>
# bgpctl show summary
</code></pre>

<p>You should get something like this if everything is working:</p>

<pre><code>
# bgpctl show summary
Neighbor                   AS    MsgRcvd    MsgSent  OutQ Up/Down  State/PrfRcvd
Vultr                   64515     137169         64     0 00:30:18 832571
</code></pre>

<p>Next, try to ping 8.9.8.9 from outside the instance. If everything was setup correctly, this should work. If it does, you can proceed to do the same configuration on your other instances, just remembering to change the INSTANCE_IP variable in /etc/bgpd.conf to match that instance's public IP.</p>

<p>Once you have a couple instances with established BGP sessions, try pinging the floating IP from outside. You can shut down and reboot instances at will and the pings should all go through as long as at least one of the instances is up. I like to run tcpdump on each instance while pinging the IP from home to see how the traffic flow changes while knocking instances out.</p>

<p>Traffic will be routed to your IP with an Equal Cost Multipath (ECMP) strategy. If you want more control over this, the Vultr doc recommends using BGP prepends to artificially increase the path length to certain instances, changing which instances get traffic. I'm not doing that, but it is an option if you wanted to configure a primary and a backup instance, for example.</p>

<p>After testing that your traffic will continue to go through wth instances down, you can decide how you want to handle services, configure any firewall rules, and change DNS records to point to the new floating IP. I won't cover this here. All I really need is to have httpd listening on the floating IP, and change the DNS A record for my domain to that IP. I'm keeping website files in sync by giving all instances a cron job to pull the Github repo for this website periodically.</p>

<p>Something to note here is that httpd logs will be spread across all the instances serving the site, because incoming connections with their HTTP requests will be routed via anycast and hit different instances. I don't really care about that for this site, but if you do, or if you are running something more important, you'll need a strategy for handling this. Centralized logging would be a good idea if that is a concern.</p>

<p>One other thing I did was change sshd to listen on only the public IP of each instance. By default it will listen on all IPs, but I don't want it listening on the floating IP address because trying to SSH to the floating IP makes no sense. Edit "ListenAddress" in /etc/ssh/sshd_config to use that instance's own public IP and restart sshd to change this.</p>

<p>This all sounds like much more work than it really is. Once you have a working bgpd.conf, you can copy it to the rest of your instances easily to get them up and running. One last thing I do is enable automatic backups on each instance in this group and reserve their public IPs. Should anything happen to an instance, this will let you destroy it and deploy a backup with the same IP address, saving you the trouble of having to configure manually again or change bgpd.conf to accomodate a new IP.</p>
        ]]>
        </description>
        <guid>http://kernelpanic.life/software/high-availability-with-openbgpd-on-openbsd.html</guid>
        <link>http://kernelpanic.life/software/high-availability-with-openbgpd-on-openbsd.html</link>
        <pubDate>Sat, 19 Jun 2021 05:00:00 GMT</pubDate>
    </item>


    <item>
      <title>Rolling Back OpenBSD PF Changes</title>
        <description>
        <![CDATA[
<h2>Rolling Back OpenBSD PF Changes</h2>
<h3>05-June-2021</h3>

<p>If you have ever done something dumb in a firewall config and locked yourself out of a machine, you will appreciate the ability to automatically roll a configuration back to a previous version after a timeout period. This is something that commercial routers and firewall devices from Cisco, Juniper, and others have implemented, though their solutions cover more than just the firewall itself.</p>

<p>My typical workflow with PF looks something like this:</p>

<p>1.) Make a backup copy of /etc/pf.conf</p>
<p>2.) Open /etc/pf.conf in my favorite text editor.</p>
<p>3.) Make bad decisions.</p>
<p>4.) Save and exit.</p>
<p>5.) Run 'pfctl -f /etc/pf.conf' and pray</p>

<p>The obvious fault in this is that if I lock myself out or cause some sort of calamity, there is no built-in ability to revert to a previous config automatically with OpenBSD's pfctl(8). You can accomplish something like this with a shell one-liner:</p>

<pre>
<code>
# pfctl -f /etc/pf.conf && sleep 60 && pfctl -d
</code>
</pre>

<p>This will load the /etc/pf.conf ruleset, wait 60 seconds, and then disable PF so you can get back in and fix whatever you broke. If you wanted instead to load a different ruleset, you could do something like this:</p>

<pre>
<code>
# pfctl -f /etc/pf.conf && sleep 60 && pfctl -f /etc/pf.conf.backup
</code>
</pre>

<p>However, there are some disadvantages to one liners like this. They are not very extensible. If you want to take other actions on timeout, the one-liner can get messy quickly.</p>

<p>They aren't very flexible. If you want to send the whole rollback process to the background so you can do other tasks, like testing your config, you can't really do this nicely or cleanly in a one liner, though it is possible. You can run it in tmux and switch back to it to send it a Ctrl-C as sort of a workaround.</p>

<p>It also is not easy to add logging. When changing PF configs it can be nice to see exactly which one was loaded, or if the process was interrupted.</p>

<p>Sometimes it can be useful to copy the backup config over to /etc/pf.conf so that it persists across a reboot. Doing this in a one liner is certainly possible, but involves more typing, and I am too lazy to do that.</p>

<p>I wanted a somewhat more robust and permanent solution than this that I could modify in the future, that also did not involve cron(8) in any way. Enter <a href="https://github.com/jsf0/rpfload">rpfload</a>, a simple Perl wrapper around pfctl(8) that handles all of the above.</p>

<p>rpfload can be used to load /etc/pf.conf and also automatically rollback to the backup file after a configurable period of time:</p>

<pre>
<code>
# rpfload -f /etc/pf.conf -b /etc/pf.conf.backup
</code>
</pre>

<p>This will load /etc/pf.conf, wait 60 seconds by default (this timeout is configurable with the -t flag), then load /etc/pf.conf.backup. If the configuration is good, killing the process will prevent the rollback. rpfload will print out its own PID to stdout make it easier to do this, especially if it is run in the background.</p>

<p>Another way to do this would be to use the -o flag, which will additionally overwrite /etc/pf.conf with the backup config if the timeout is reached without interruption. One possible utility of this would be so that you don't forget and end up rebooting with the broken /etc/pf.conf, which would be loaded on boot.</p>

<p>If all you want to do is disable PF rather than load a backup config, you can do this with the -d flag:</p>

<pre>
<code>
# rpfload -d -f /etc/pf.conf
</code>
</pre>

<p>rpfload will also log what it does to syslog, so you can see which PF config was applied by checking /var/log/messages.</p>

<p>There are valid criticisms. It may be unnecessary if you don't care about logging, switching configs, or other facy things. It is written in Perl, which some people hate. Worse, it was written in Perl by <i>me</i>, a non-Perl-programmer, so the code is not perfect. Doubtless you can think of others.</p>

<p>But it solves one of my problems exactly how I wanted, has no external dependencies in OpenBSD, and I think I might even understand it. That's all I wanted. You can get it <a href="https://github.com/jsf0/rpfload">here</a></p>
        ]]>
        </description>
        <guid>http://kernelpanic.life/software/rolling-back-openbsd-pf-changes.html</guid>
        <link>http://kernelpanic.life/software/rolling-back-openbsd-pf-changes.html</link>
        <pubDate>Sat, 05 Jun 2021 05:00:00 GMT</pubDate>
    </item>


    <item>
      <title>Safely Broadcasting All With Terminator</title>
        <description>
        <![CDATA[
<h2>Safely Broadcasting All With Terminator</h2>
<h3>03-June-2021</h3>

<p>This won't be a long post, but hopefully will save someone out there from a disaster.</p>

<p>I wrote <a href="http://kernelpanic.life/software/broadcast-commands-in-tmux.html">before</a> about how I am a fan of Terminator and its "broadcast all" feature, which allows you to send a command to multiple Terminator panes or windows simultaneously. When combined with the pane splitting feature, this can be a tremendous time saver when you need to run the same command on multiple servers, for example, and have multiple SSH sessions open.</p>

<p>However, "broadcast all" can be dangerous, because Terminator will happily send that command to <strong>all</strong> of your Terminator windows, even in other virtual desktops. Working on configuring some out-of-production servers in one Terminator window? Forgot about that minimized Terminator window that has an open SSH session to a production server? It's easy to see where this could go. Fortunately, the only damage I have inflicted with this mistake (so far) was to my ego when I sent a reboot command to a bunch of remote machines, and was very surprised to see my own laptop reboot too. Sigh.</p>

<p>The "broadcast group" alternative seems to be the intended way to prevent this, but this requires actually setting up groups and then manually assigning Terminator instances to them. I simply can't be bothered. Instead, I just want to broadcast to multiple panes in my current Terminator window and nowhere else.</p>

<p>Fortunately, there's an easy solution: don't let Terminator use DBus. Go to preferences, uncheck "DBus server", done. Now "broadcast all" will only send your commands to the current window and its panes. You other Terminator sessions will be untouched.</p>
        ]]>
        </description>
        <guid>http://kernelpanic.life/software/safely-broadcasting-all-terminator.html</guid>
        <link>http://kernelpanic.life/software/safely-broadcasting-all-terminator.html</link>
        <pubDate>Thu, 03 Jun 2021 05:00:00 GMT</pubDate>
    </item>

    <item>
      <title>OpenBSD 6.9 veb vs bridge Benchmarks</title>
        <description>
        <![CDATA[
<h2>OpenBSD 6.9 veb vs bridge Benchmarks</h2>
<h3>29-May-2021</h3>

<p>OpenBSD recently introduced a new virtual ethernet bridge, called <a href="https://marc.info/?l=openbsd-tech&m=161335364329307">veb(4)</a> that can replace bridge(4) for use as a layer 2 switch. David Gwynne's email introducing veb(4) explains the differences far better than I could, but I was interested in testing the forwarding performance of veb(4) when compared with bridge(4).</p>

<p>For testing this, I used the EdgeRouter 4, running OpenBSD 6.9. It has 4 cores, and performance is comparable to the APU4 from what I have seen when doing <a href="http://kernelpanic.life/hardware/openbsd-router-benchmarks.html">router benchmarks</a>. I gave it a very basic configuration, which can be seen below:</p>

<p>/etc/hostname.bridge0</p>
<pre>
<code>
add cnmac0
add cnmac1
add cnmac2
add cnmac3
up
</code>
</pre>

<p>/etc/hostname.cnmac*</p>

<pre>
<code>
up
</code>
</pre>

<p>/etc/pf.conf</p>

<pre>
<code>
set skip on lo0
pass
</code>
</pre>

<p>The veb(4) configuration was exactly the same, with only /etc/hostname.bridge0 being renamed to /etc/hostname.veb0</p>

<p>I used iperf3 for the test, on an X250 running DragonFly BSD 6.0 and a T14 running Ubuntu 20.04. First, I tested the two connected directly to each other via ethernet, with no switch between them:</p>

<pre>
<code>
Accepted connection from 172.16.1.2, port 4071
[  5] local 172.16.1.3 port 5201 connected to 172.16.1.2 port 4367
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-1.00   sec  93.3 MBytes   782 Mbits/sec
[  5]   1.00-2.00   sec   111 MBytes   934 Mbits/sec
[  5]   2.00-3.00   sec   111 MBytes   934 Mbits/sec
[  5]   3.00-4.00   sec   111 MBytes   934 Mbits/sec
[  5]   4.00-5.00   sec   111 MBytes   934 Mbits/sec
[  5]   5.00-6.00   sec   111 MBytes   934 Mbits/sec
[  5]   6.00-7.00   sec   111 MBytes   934 Mbits/sec
[  5]   7.00-8.00   sec   111 MBytes   934 Mbits/sec
[  5]   8.00-9.00   sec   111 MBytes   934 Mbits/sec
[  5]   9.00-10.00  sec   111 MBytes   934 Mbits/sec
[  5]  10.00-10.15  sec  16.3 MBytes   934 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-10.15  sec  1.09 GBytes   919 Mbits/sec                  receiver
</code>
</pre>

<p>As they both have gigabit ports, the above is the maximum expected for this test.</p>

<p>First up was bridge(4):</p>

<pre>
<code>
Accepted connection from 172.16.1.2, port 3498
[  5] local 172.16.1.3 port 5201 connected to 172.16.1.2 port 3600
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-1.00   sec  37.2 MBytes   312 Mbits/sec
[  5]   1.00-2.00   sec  52.6 MBytes   441 Mbits/sec
[  5]   2.00-3.00   sec  50.8 MBytes   426 Mbits/sec
[  5]   3.00-4.00   sec  50.1 MBytes   420 Mbits/sec
[  5]   4.00-5.00   sec  51.2 MBytes   430 Mbits/sec
[  5]   5.00-6.00   sec  50.3 MBytes   422 Mbits/sec
[  5]   6.00-7.00   sec  50.7 MBytes   425 Mbits/sec
[  5]   7.00-8.00   sec  51.4 MBytes   431 Mbits/sec
[  5]   8.00-9.00   sec  51.4 MBytes   431 Mbits/sec
[  5]   9.00-10.00  sec  50.9 MBytes   427 Mbits/sec
[  5]  10.00-10.16  sec  8.39 MBytes   441 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-10.16  sec   505 MBytes   417 Mbits/sec                  receiver
</code>
</pre>

<p>During the test, I was watching the output of top(1) on the EdgeRouter and this test resulted in 99% utilization of 1 core on the EdgeRouter, while the other 3 remained idle.</p>

<p>On to veb(4):</p>

<pre>
<code>
Accepted connection from 172.16.1.2, port 2069
[  5] local 172.16.1.3 port 5201 connected to 172.16.1.2 port 4958
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-1.00   sec  80.9 MBytes   679 Mbits/sec
[  5]   1.00-2.00   sec   111 MBytes   934 Mbits/sec
[  5]   2.00-3.00   sec   111 MBytes   934 Mbits/sec
[  5]   3.00-4.00   sec   111 MBytes   934 Mbits/sec
[  5]   4.00-5.00   sec   111 MBytes   934 Mbits/sec
[  5]   5.00-6.00   sec   111 MBytes   934 Mbits/sec
[  5]   6.00-7.00   sec   111 MBytes   934 Mbits/sec
[  5]   7.00-8.00   sec   111 MBytes   934 Mbits/sec
[  5]   8.00-9.00   sec   111 MBytes   934 Mbits/sec
[  5]   9.00-10.00  sec   111 MBytes   934 Mbits/sec
[  5]  10.00-10.13  sec  14.0 MBytes   934 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-10.13  sec  1.07 GBytes   909 Mbits/sec                  receiver
</code>
</pre>

<p>Without going through pf, veb(4) is able to forward traffic between the two laptops at essentially the same rate as a direct connection. 2 cores were used at about 30-40% utilization on each core with veb(4), in contrast with the single core at 99% utilization when tested with bridge(4).</p>

<p>Running the test again with link1 set in hostname.veb0 to force traffic through pf leads to the following:</p>

<pre>
<code>
Accepted connection from 172.16.1.2, port 4527
[  5] local 172.16.1.3 port 5201 connected to 172.16.1.2 port 3978
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-1.00   sec  57.4 MBytes   481 Mbits/sec
[  5]   1.00-2.00   sec  80.8 MBytes   678 Mbits/sec
[  5]   2.00-3.00   sec  81.5 MBytes   684 Mbits/sec
[  5]   3.00-4.00   sec  81.0 MBytes   679 Mbits/sec
[  5]   4.00-5.00   sec  81.2 MBytes   681 Mbits/sec
[  5]   5.00-6.00   sec  80.4 MBytes   674 Mbits/sec
[  5]   6.00-7.00   sec  80.1 MBytes   672 Mbits/sec
[  5]   7.00-8.00   sec  80.2 MBytes   673 Mbits/sec
[  5]   8.00-9.00   sec  73.5 MBytes   616 Mbits/sec
[  5]   9.00-10.00  sec  71.8 MBytes   603 Mbits/sec
[  5]  10.00-10.14  sec  11.4 MBytes   677 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-10.14  sec   779 MBytes   645 Mbits/sec                  receiver
</code>
</pre>

<p>This is a pretty encouraging result, and while this configuration was very simple, the performance gap is such that if veb(4) does what you want, it makes sense to use it instead of bridge(4), assuming you are comfortable using much newer and less tested code. It is also possible that veb(4) can go faster than this, but unfortunately I can only test up to gigabit with my hardware. A better test would be to test actual packets per second, and I may redo this eventually to see what kind of results that gets.</p>

<p>Update: /u/Kernigh pointed out that veb(4) was not sending traffic through pf in the tests above, whereas bridge(4) was. This was fixed and the test run again.</p>
        ]]>
        </description>
        <guid>http://kernelpanic.life/hardware/openbsd-veb-vs-bridge-benchmarks.html</guid>
        <link>http://kernelpanic.life/hardware/openbsd-veb-vs-bridge-benchmarks.html</link>
        <pubDate>Sat, 29 May 2021 05:00:00 GMT</pubDate>
    </item>


    <item>
      <title>OpenBSD 6.9 Router Benchmarks</title>
        <description>
        <![CDATA[
<h2>OpenBSD 6.9 Router Benchmarks</h2>
<h3>21-May-2021</h3>

<img src="http://kernelpanic.life/img/openbsd-routers.jpg" alt="OpenBSD Routers">

<p>I've been using OpenBSD for my home router/gateway for years, and have run it on a number of different types of hardware. I recently got Verizon's gigabit service which is advertised at up to 940 Mb/s download and 880 Mb/s upload speeds, so I decided to benchmark some of the routers I have laying around. The contestants are:</p>

<ul>
	<li><strong>Ubiquiti EdgeRouter Lite:</strong> dual core 500 Mhz Cavium Octeon, Cavium ethernet using cnmac driver</li>
	<li><strong>PC Engines APU4:</strong> quad core 1 GHz AMD GX-412TC Jaguar, Intel i211AT ethernet with em driver</li>
	<li><strong>Ubiquiti EdgeRouter 4:</strong> quad core 1 GHz Cavium Octeon, Cavium ethernet with cnmac driver</li>
	<li><strong>Supermicro E300-8D:</strong> quad core 2.2 GHz Intel Xeon D-1518 (SMT disabled), Intel I210 ethernet with em driver</li>
</ul>

<p>All of these routers are running OpenBSD 6.9 and are set up exactly as described in the <a href="https://www.openbsd.org/faq/pf/example1.html">Building a Router</a> FAQ page. There are lots of tweaks people do for performance, but I did not test any of them. What you see in the guide is what you get. CPU frequency was set at the maximum via apmd, where applicable.</p>

<p>Testing was done from a T14 running Ubuntu 20.04 with 3 runs at Speedtest.net using the Vultr speed test server. This is not perfect as it only tests web traffic, so smaller or larger packet sizes than what you find in web traffic are not tested, nor is UDP tested either. Since this is going to an external server outside my network, it also sends that traffic over other carriers, so some of this is at the mercy of the route. But this is not meant to be scientific, and probably represents how most people will use their router anyway.</p>

<p>Results are below, (averaged over the 3 tests):</p>

<ul>
	<li>EdgeRouter Lite: <strong>114.63</strong> Mb/s download, <strong>106.74</strong> Mb/s upload</li>
	<li>APU4: <strong>358.02</strong> Mb/s download, <strong>328.42</strong> Mb/s upload</li>
	<li>EdgeRouter 4: <strong>462.23</strong> Mb/s download, <strong>411.59</strong> Mb/s upload</li>
	<li>E300-8D: <strong>752.52</strong> Mb/s download, <strong>884.58</strong> Mb/s upload</li>
</ul>

<p>The EdgeRouter Lite has a small ASIC onboard for packet forwarding which is used by Ubiquiti's EdgeOS. OpenBSD does not use this at all, so all of this was done by the two 500 MHz cores. One interesting thing is that the EdgeRouter 4 was signifcantly faster than the APU4, beating it by about 100 Mb/s. Despite the fact that both have four 1 GHz cores, the Octeon apparently moves packets around better than the AMD Jaguar. The fastest in the list is unsurprisingly the Xeon powered Supermicro E300, and it likely can go faster, but the connection may have been the limitation here.</p>

<p>I am currently using the Supermicro as my router, though my favorite device is the EdgeRouter 4 here for the best balance of speed and low power consumption. The E300's fans have a very whiny pitch to them that has made me relegate this machine to the basement. On the plus side, it has IPMI, and it is fast enough to be usable for other purposes.</p>

<p><strong>Update:</strong> There was some criticism of using Speedtest.net as the test method, which I expected and I agree with it. I ran the following tests with iperf3 to see if there would be a difference. I did not test the Supermicro in this manner. iperf3 was running on the Supermicro in server mode, and the T14 laptop was connecting through the tested router to the iperf3 server on the Supermicro for all of these tests. These were with iperf3's default options.</p>

<p>I also tried with and without the scrub and antispoof lines in pf.conf to see if that would make any difference. See below for the results:</p>

<p>EdgeRouter Lite with scrub/antispoof</p>

<pre>
<code>
Accepted connection from 192.168.1.99, port 51479
[  5] local 192.168.1.1 port 5201 connected to 192.168.1.99 port 50181
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-1.00   sec  12.9 MBytes   108 Mbits/sec
[  5]   1.00-2.00   sec  14.8 MBytes   124 Mbits/sec
[  5]   2.00-3.00   sec  15.1 MBytes   127 Mbits/sec
[  5]   3.00-4.00   sec  15.5 MBytes   130 Mbits/sec
[  5]   4.00-5.00   sec  15.6 MBytes   131 Mbits/sec
[  5]   5.00-6.00   sec  15.1 MBytes   126 Mbits/sec
[  5]   6.00-7.00   sec  15.4 MBytes   129 Mbits/sec
[  5]   7.00-8.00   sec  14.7 MBytes   123 Mbits/sec
[  5]   8.00-9.00   sec  14.9 MBytes   125 Mbits/sec
[  5]   8.00-9.00   sec  14.9 MBytes   125 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-9.00   sec   142 MBytes   133 Mbits/sec                  receiver
</code>
</pre>

<p>EdgeRouter Lite without scrub/antispoof</p>

<pre>
<code>
Accepted connection from 192.168.1.99, port 62412
[  5] local 192.168.1.1 port 5201 connected to 192.168.1.99 port 51770
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-1.00   sec  10.5 MBytes  87.8 Mbits/sec
[  5]   1.00-2.00   sec  15.6 MBytes   131 Mbits/sec
[  5]   2.00-3.00   sec  16.5 MBytes   139 Mbits/sec
[  5]   3.00-4.00   sec  16.6 MBytes   139 Mbits/sec
[  5]   4.00-5.00   sec  16.6 MBytes   139 Mbits/sec
[  5]   5.00-6.00   sec  17.3 MBytes   145 Mbits/sec
[  5]   6.00-7.00   sec  16.0 MBytes   134 Mbits/sec
[  5]   7.00-8.00   sec  18.2 MBytes   153 Mbits/sec
[  5]   8.00-9.00   sec  17.9 MBytes   150 Mbits/sec
[  5]   9.00-10.00  sec  17.0 MBytes   143 Mbits/sec
[  5]  10.00-10.01  sec   177 KBytes   132 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-10.01  sec   162 MBytes   136 Mbits/sec                  receiver
</code>
</pre>

<p>APU4 with scrub/antispoof</p>

<pre>
<code>
Accepted connection from 192.168.1.103, port 62063
[  5] local 192.168.1.1 port 5201 connected to 192.168.1.103 port 58644
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-1.00   sec  28.4 MBytes   238 Mbits/sec
[  5]   1.00-2.00   sec  41.9 MBytes   351 Mbits/sec
[  5]   2.00-3.00   sec  47.4 MBytes   397 Mbits/sec
[  5]   3.00-4.00   sec  50.2 MBytes   421 Mbits/sec
[  5]   4.00-5.00   sec  51.6 MBytes   433 Mbits/sec
[  5]   5.00-6.00   sec  52.4 MBytes   439 Mbits/sec
[  5]   6.00-7.00   sec  53.3 MBytes   447 Mbits/sec
[  5]   7.00-8.00   sec  54.0 MBytes   453 Mbits/sec
[  5]   8.00-9.00   sec  54.3 MBytes   456 Mbits/sec
[  5]   9.00-10.00  sec  54.6 MBytes   458 Mbits/sec
[  5]  10.00-10.00  sec  64.2 KBytes   451 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-10.00  sec   488 MBytes   409 Mbits/sec                  receiver
</code>
</pre>

<p>APU4 without scrub/antispoof</p>

<pre>
<code>
Accepted connection from 192.168.1.103, port 60797
[  5] local 192.168.1.1 port 5201 connected to 192.168.1.103 port 64446
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-1.00   sec  35.2 MBytes   295 Mbits/sec
[  5]   1.00-2.00   sec  45.1 MBytes   379 Mbits/sec
[  5]   2.00-3.00   sec  49.9 MBytes   419 Mbits/sec
[  5]   3.00-4.00   sec  51.6 MBytes   433 Mbits/sec
[  5]   4.00-5.00   sec  53.6 MBytes   450 Mbits/sec
[  5]   5.00-6.00   sec  52.4 MBytes   440 Mbits/sec
[  5]   6.00-7.00   sec  55.9 MBytes   469 Mbits/sec
[  5]   7.00-8.00   sec  56.6 MBytes   475 Mbits/sec
[  5]   8.00-9.00   sec  57.0 MBytes   478 Mbits/sec
[  5]   9.00-10.00  sec  57.3 MBytes   481 Mbits/sec
[  5]  10.00-10.00  sec   245 KBytes   543 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-10.00  sec   515 MBytes   432 Mbits/sec                  receiver
</code>
</pre>

<p>EdgeRouter 4 with scrub/antispoof</p>

<pre>
<code>
Accepted connection from 192.168.1.97, port 57379
[  5] local 192.168.1.1 port 5201 connected to 192.168.1.97 port 54255
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-1.00   sec  26.4 MBytes   222 Mbits/sec
[  5]   1.00-2.00   sec  42.8 MBytes   359 Mbits/sec
[  5]   2.00-3.00   sec  51.7 MBytes   434 Mbits/sec
[  5]   3.00-4.00   sec  56.2 MBytes   472 Mbits/sec
[  5]   4.00-5.00   sec  60.2 MBytes   505 Mbits/sec
[  5]   5.00-6.00   sec  62.5 MBytes   524 Mbits/sec
[  5]   6.00-7.00   sec  64.4 MBytes   540 Mbits/sec
[  5]   7.00-8.00   sec  65.5 MBytes   549 Mbits/sec
[  5]   8.00-9.00   sec  66.8 MBytes   560 Mbits/sec
[  5]   9.00-10.00  sec  66.4 MBytes   557 Mbits/sec
[  5]  10.00-10.00  sec   156 KBytes   515 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-10.00  sec   563 MBytes   472 Mbits/sec                  receiver
</code>
</pre>

<p>EdgeRouter 4 without scrub/antispoof</p>

<pre>
<code>
Accepted connection from 192.168.1.97, port 60739
[  5] local 192.168.1.1 port 5201 connected to 192.168.1.97 port 60797
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-1.00   sec  25.0 MBytes   209 Mbits/sec
[  5]   1.00-2.00   sec  42.7 MBytes   358 Mbits/sec
[  5]   2.00-3.00   sec  54.5 MBytes   457 Mbits/sec
[  5]   3.00-4.00   sec  60.4 MBytes   507 Mbits/sec
[  5]   4.00-5.00   sec  64.7 MBytes   543 Mbits/sec
[  5]   5.00-6.00   sec  68.1 MBytes   571 Mbits/sec
[  5]   6.00-7.00   sec  69.3 MBytes   581 Mbits/sec
[  5]   7.00-8.00   sec  71.1 MBytes   596 Mbits/sec
[  5]   8.00-9.00   sec  72.2 MBytes   606 Mbits/sec
[  5]   9.00-10.00  sec  72.8 MBytes   611 Mbits/sec
[  5]  10.00-10.00  sec   158 KBytes   552 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-10.00  sec   601 MBytes   504 Mbits/sec                  receiver
</code>
</pre>

<p>I also measured the power consumption of each of these from the wall at idle and under load:</p>

<ul>
	<li><strong>EdgeRouter Lite:</strong> 6.9 watts idle, 7.4 watts max</li>
	<li><strong>APU4:</strong> 6.4 watts idle, 7.3 watts max</li>
	<li><strong>EdgeRouter 4:</strong> 6.9 watts idle, 7.5 watts max</li>
</ul>

<p>There was little discernible difference in power consumption between these, and they could be within the margin of error of the device I used to measure.</p>

<p><strong>Update 11-June-2021</strong>: The APU4 was on an old BIOS when tested, which did not support boosting CPU core clock speed under load. This is a feature added in v4.9.0.2, and will boost to 1.4 GHz. I updated the BIOS to v4.13.06 and re-ran the tests on the APU4, which can be seen below (tested for 60 seconds with 6 second interval):</p>

<pre>
<code>
Connecting to host 192.168.1.1, port 5201
[  5] local 172.16.1.3 port 4631 connected to 192.168.1.1 port 5201
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-6.00   sec   349 MBytes   488 Mbits/sec
[  5]   6.00-12.00  sec   422 MBytes   590 Mbits/sec
[  5]  12.00-18.00  sec   425 MBytes   594 Mbits/sec
[  5]  18.00-24.00  sec   425 MBytes   595 Mbits/sec
[  5]  24.00-30.00  sec   425 MBytes   595 Mbits/sec
[  5]  30.00-36.00  sec   425 MBytes   594 Mbits/sec
[  5]  36.00-42.00  sec   425 MBytes   595 Mbits/sec
[  5]  42.00-48.01  sec   427 MBytes   597 Mbits/sec
[  5]  48.01-54.01  sec   424 MBytes   592 Mbits/sec
[  5]  54.01-60.01  sec   425 MBytes   594 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-60.01  sec  4.08 GBytes   583 Mbits/sec                  sender
[  5]   0.00-60.17  sec  4.08 GBytes   582 Mbits/sec                  receiver
</code>
</pre>

<p>Without scrub and antispoof:</p>
<pre>
<code>
Connecting to host 192.168.1.1, port 5201
[  5] local 172.16.1.3 port 4336 connected to 192.168.1.1 port 5201
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-6.00   sec   387 MBytes   541 Mbits/sec
[  5]   6.00-12.00  sec   476 MBytes   665 Mbits/sec
[  5]  12.00-18.00  sec   482 MBytes   675 Mbits/sec
[  5]  18.00-24.00  sec   484 MBytes   676 Mbits/sec
[  5]  24.00-30.00  sec   482 MBytes   675 Mbits/sec
[  5]  30.00-36.00  sec   483 MBytes   676 Mbits/sec
[  5]  36.00-42.00  sec   481 MBytes   672 Mbits/sec
[  5]  42.00-48.00  sec   480 MBytes   671 Mbits/sec
[  5]  48.00-54.00  sec   480 MBytes   670 Mbits/sec
[  5]  54.00-60.00  sec   469 MBytes   655 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-60.00  sec  4.59 GBytes   658 Mbits/sec                  sender
[  5]   0.00-60.14  sec  4.59 GBytes   656 Mbits/sec                  receiver
</code>
</pre>
        ]]>
        </description>
        <guid>http://kernelpanic.life/hardware/openbsd-router-benchmarks.html</guid>
        <link>http://kernelpanic.life/hardware/openbsd-router-benchmarks.html</link>
        <pubDate>Fri, 21 May 2021 05:00:00 GMT</pubDate>
    </item>

    <item>
      <title>The ThinkPad X1 Carbon 9th Gen</title>
        <description>
        <![CDATA[
<h2>The ThinkPad X1 Carbon 9th Gen</h2>
<h3>14-May-2021</h3>
<img src="http://kernelpanic.life/img/x1-carbon-gen9.jpg" alt="A pair of X1 Carbon Gen 9 ThinkPads">

<p><strong>Year:</strong> 2021</p>
<p><strong>CPU:</strong> 2.8 GHz Intel Core i7-1165G7 (4 physical cores, 8 logical cores with SMT)</p>
<p><strong>Graphics:</strong> Intel Xe (Tiger Lake)</p>
<p><strong>RAM:</strong> 16 GB</p>
<p><strong>Storage:</strong> 256 GB Toshiba KXG6AZNV256G NVMe SSD</p>
<p><strong>"But can it run Chrome?":</strong> Yes </p>
<p><a href="http://kernelpanic.life/hardware/x1c9hdr_dmesg.txt">dmesg</a>

<p>My employer recently issued me a new 9th Gen X1 Carbon and I liked it enough to buy one for myself. This post will compare the two side by side.</p>

<p>The company X1 comes with the 400 nit 1920x1200 display, and the i5-1145G7 CPU. The display color accuracy is noticeably improved over the T480 and T14 I have here, both of which have the low-end 1920x1080 panel offered those years. 16:10 is a nice aspect ratio and combined with the much thinner bezels, the laptop's footprint is much more compact than the 16:9 T-series. I have it running Ubuntu 21.04, and everything works as you would expect. Battery life is somewhere around 10 hours at 45% screen brightness.</p>

<p>The X1 that I bought has the i7-1165G7 and the 3840x2400 HDR display. Right off the bat, you will notice that this is a heavier laptop than the 1920x1200 X1, and all of that weight is in the display. But that is a price worth paying because the display is stunning, with excellent sharpness and dazzling color accuracy. Subjectively, it's at least on par with or better than the 2018 Retina MacBook Air, and better than the 2014 15" Retina MacBook Pro. After years of staring at ThinkPad etch-a-sketch quality displays, they have finally given us a display worth looking at. Nice.</p>

<p>Less nice is the keyboard lottery. The company X1 has a truly brilliant keyboard. The keys are soft but have a very tactile snap and do not wiggle at all. My X1's keyboard is apparently from a different supplier (update: not true, see below). The keys have much less of a tactile feel when pressed, and they wiggle somewhat when touched lightly. I can get used to this--and it is still a good keyboard--but after using the company X1, it is noticeably worse, and annoying. Come on Lenovo. And before you suggest it, no I am not going to just swap keyboards with the work laptop. For one thing, it would be unethical, and for another, removing the keyboard in these is quite the surgical operation. Gone are the old days when a ThinkPad keyboard could be removed with a couple screws, at least for the X1.</p>

<p>While the keyboard is apparently still a hit or miss affair with Lenovo, they did improve the touchpad. It has a glassy feel reminiscent of Macs, and is pleasant to use. Purists will want to use the TrackPoint, and I replaced the standard TrackPoint cap with a concave cap made by Saoto Tsuchiya of <a href="https://www.etsy.com/shop/SaotoTech">SaotoTech</a>. I have been using these caps for years and they are quite simply the best upgrade you can do with your ThinkPad. The amount of pressure required is greatly reduced with the concave design, and they fit perfectly. If you plan to use the TrackPoint on these, I strongly recommend SaotoTech. I have no idea why Lenovo doesn't ship with this design from the factory. For middle button scrolling, I use the following /etc/X11/xorg.conf:</p>

<pre>
<code>
Section "InputDevice"
        Identifier  "Trackpoint"
        Driver      "mouse"
        Option      "Protocol" "Auto"
        Option      "Device" "/dev/wsmouse"
EndSection

Section "InputClass"
  Identifier    "Trackpoint"
        MatchIsPointer  "True"
        Option          "Emulate3Buttons"       "False"
        Option          "EmulateWheel"  "True"
        Option          "EmulateWheelButton"    "2"
        Option          "XAxisMapping"  "6 7"
        Option          "YAxisMapping"  "4 5"
EndSection
</code>
</pre>

<p>Software-wise, I briefly ran Arch Linux on this to test a few things, but now am running OpenBSD -current (6.9 right now) on the HDR X1 and things are mostly good. The AX201 wifi is supported by the iwx driver. I did run into a bug where this had trouble connecting to an AP that was using mixed WPA2/WPA1 and whose channel was identical to a neighboring AP with the same SSID. I have not had this issue at home with WPA2 and 5 GHz. Support was only added for the AX201 a couple weeks ago, and commits are still coming in for iwx quickly, so I expect this device will improve over time (though this could have been a buggy AP).</p>

<p>The Intel Xe graphics are supported by inteldrm, and this is capable of running at full 3840x2400 resolutions smoothly. I have seen a couple graphical stutters when running Chromium on this that are not present in Firefox, which runs just fine with webrender and layers acceleration enabled. There were occasions when switching between window groups in cwm led to Xorg getting stuck, but curiously this has not happened since I stopped using oxbar. I am not sure what the cause is here, though inteldrm routinely spits errors into dmesg. Again, this is brand new hardware, so I expect this will improve. In Arch Linux, graphics were functional with xf86-video-intel, but the performance at full resolution was appalling. Using intel-media-driver was the solution.</p>

<p>In OpenBSD, I run at full display resolution, and with GTK and QT apps at 2x scale, set with the following in my ~/.xsession file:</p>

<pre>
<code>
export GDK_SCALE=2.0
export QT_SCALE_FACTOR=2.0
</code>
</pre>

<p>This works nicely with Firefox and I have not had any problems. It is also possible to run this at 1920x1200 set with xrandr like so:</p>

<pre>
<code>
xrandr --output eDP-1 --mode 1920x1200
</code>
</pre>

<p>This eliminates the need for scaling (at least 2x scaling) and everything still seems pretty sharp, but not <i>quite</i> as sharp as 3840x2400 with scaling.</p>

<p>The Dolby Atmos sound works out of the box on OpenBSD and can be controlled by the keyboard controls (actually, all of the Fn keys work out of the box). Sound quality is quite good, and a noticeable step up from the T14. Not quite as good as the newer Macs however. In Arch Linux, I had sound controlled by ALSA and it worked fine.</p>

<p>Battery life in OpenBSD is reported at around 5 hours at 50% display brightness but in reality is closer to 4, whereas battery life in Arch with TLP enabled was reported at 10 hours, though in reality was more like 7. Actual power consumption in OpenBSD at idle and 50% brightness is about 11.5 watts, and this has a 57 watt-hour battery capacity. In Linux it was around 7.5 watts, and even less than that on the 1920x1200 version. The laptop runs hotter in OpenBSD compared to Linux too. This is one area where Linux is far ahead of OpenBSD on this hardware. Another area is suspend/resume support, which works fine in Linux on the 5.12 kernel, and doesn't work at all on OpenBSD. This is reportedly due to the 9th Gen lacking ACPI S3 suspend mode, as Joshua Stein <a href="http://jcs.org/2021/01/27/x1nano">reported</a> on the X1 Nano. Hibernation works with ZZZ, and that has been what I am doing instead, though it is less convenient.</p>

<p>Overall I think Lenovo has made a very good laptop, with good Linux and BSD support. I do wish there was less variation in keyboard quality, and I wish the keyboard could be swapped without basically disassembling the entire laptop. The standard 400 nit 1920x1200 display works well, and the 3840x2400 HDR display is gorgeous and completely worth the money. Hardware support in OpenBSD is coming along, and with the popularity of these amongst developers, I expect that the quirks will be worked out. It works flawlessly in Ubuntu out of the box, and with some tinkering you can get Arch to run equally as well, so this is a good choice if you are planning to run Linux.</p>

<p><strong>Update:</strong> A helpful Redditor (/u/ibmthink) recommended checking the keyboard supplier with Lenovo's <a href="https://support.lenovo.com/us/en/partslookup">parts lookup tool</a>. After inputting the serial numbers of both laptops, it turns out they both are using Chicony keyboards with the same part number (5M11C53235) and same mfg. part number (SBB0Z70654). This is disappointing, because I had hoped to eventually replace my keyboard with a better one, but if there is this much quality variance in the keyboard from the same supplier, this may not be easy.</p>

<p>Additionally, the display panel EDIDs of both laptops are below.</p>

<p>Company X1C9 with 1920x1200 panel:</p>

<pre>
<code>
edid-decode (hex):

00 ff ff ff ff ff ff 00 0e 6f 04 14 00 00 00 00
00 1e 01 04 a5 1e 13 78 03 12 9b a4 54 4c 9b 24
0d 4f 53 00 00 00 01 01 01 01 01 01 01 01 01 01
01 01 01 01 01 01 35 3c 80 a0 70 b0 23 40 30 20
36 00 2e bd 10 00 00 18 00 00 00 fd 00 30 3c 4a
4a 0f 01 0a 20 20 20 20 20 20 00 00 00 fe 00 43
53 4f 54 20 54 33 0a 20 20 20 20 20 00 00 00 fe
00 4d 4e 45 30 30 37 4a 41 31 2d 31 0a 20 00 c9

----------------

Block 0, Base EDID:
  EDID Structure Version & Revision: 1.4
  Vendor & Product Identification:
    Manufacturer: CSO
    Model: 5124
    Made in: 2020
  Basic Display Parameters & Features:
    Digital display
    Bits per primary color channel: 8
    DisplayPort interface
    Maximum image size: 30 cm x 19 cm
    Gamma: 2.20
    Supported color formats: RGB 4:4:4
    First detailed timing includes the native pixel format and preferred refresh rate
    Display is continuous frequency
  Color Characteristics:
    Red  : 0.6406, 0.3291
    Green: 0.2968, 0.6074
    Blue : 0.1425, 0.0517
    White: 0.3105, 0.3271
  Established Timings I & II: none
  Standard Timings: none
  Detailed Timing Descriptors:
    DTD 1:  1920x1200   60.001 Hz   8:5    74.101 kHz 154.130 MHz (302 mm x 189 mm)
                 Hfront   48 Hsync  32 Hback  80 Hpol N
                 Vfront    3 Vsync   6 Vback  26 Vpol N
  Display Range Limits:
    Monitor ranges (Bare Limits): 48-60 Hz V, 74-74 kHz H, max dotclock 150 MHz
    Alphanumeric Data String: 'CSOT T3'
    Alphanumeric Data String: 'MNE007JA1-1'
Checksum: 0xc9
</code>
</pre>

<p>My X1C9 with the 3840x2400 HDR panel:</p>

<pre>
<code>
edid-decode (hex):

00 ff ff ff ff ff ff 00 0e 6f 03 14 00 00 00 00
00 1e 01 04 b5 1e 13 78 03 e2 06 ae 50 42 ae 24
11 53 58 00 00 00 01 01 01 01 01 01 01 01 01 01
01 01 01 01 01 01 80 e8 00 a0 f0 60 50 90 30 20
36 00 2e bd 10 00 00 18 00 00 00 fd 00 30 3c 95
95 3c 01 0a 20 20 20 20 20 20 00 00 00 fe 00 43
53 4f 54 20 54 33 0a 20 20 20 20 20 00 00 00 fe
00 4d 4e 45 30 30 37 5a 41 31 2d 32 0a 20 01 6a

02 03 0f 00 e3 05 80 00 e6 06 05 01 6a 6a 24 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 9a

----------------

Block 0, Base EDID:
  EDID Structure Version & Revision: 1.4
  Vendor & Product Identification:
    Manufacturer: CSO
    Model: 5123
    Made in: 2020
  Basic Display Parameters & Features:
    Digital display
    Bits per primary color channel: 10
    DisplayPort interface
    Maximum image size: 30 cm x 19 cm
    Gamma: 2.20
    Supported color formats: RGB 4:4:4
    First detailed timing includes the native pixel format and preferred refresh rate
    Display is continuous frequency
  Color Characteristics:
    Red  : 0.6826, 0.3144
    Green: 0.2578, 0.6816
    Blue : 0.1406, 0.0664
    White: 0.3251, 0.3457
  Established Timings I & II: none
  Standard Timings: none
  Detailed Timing Descriptors:
    DTD 1:  3840x2400   60.000 Hz   8:5   148.800 kHz 595.200 MHz (302 mm x 189 mm)
                 Hfront   48 Hsync  32 Hback  80 Hpol N
                 Vfront    3 Vsync   6 Vback  71 Vpol N
  Display Range Limits:
    Monitor ranges (Bare Limits): 48-60 Hz V, 149-149 kHz H, max dotclock 600 MHz
    Alphanumeric Data String: 'CSOT T3'
    Alphanumeric Data String: 'MNE007ZA1-2'
  Extension blocks: 1
Checksum: 0x6a

----------------

Block 1, CTA-861 Extension Block:
  Revision: 3
  Native detailed modes: 0
  Colorimetry Data Block:
    BT2020RGB
  HDR Static Metadata Data Block:
    Electro optical transfer functions:
      Traditional gamma - SDR luminance range
      SMPTE ST2084
    Supported static metadata descriptors:
      Static metadata type 1
    Desired content max luminance: 106 (496.743 cd/m^2)
    Desired content max frame-average luminance: 106 (496.743 cd/m^2)
    Desired content min luminance: 36 (0.099 cd/m^2)
Checksum: 0x9a
</code>
</pre>
        ]]>
        </description>
        <guid>http://kernelpanic.life/hardware/thinkpad-x1-carbon-gen9.html</guid>
        <link>http://kernelpanic.life/hardware/thinkpad-x1-carbon-gen9.html</link>
        <pubDate>Fri, 14 May 2021 05:00:00 GMT</pubDate>
    </item>


    <item>
      <title>Web Rendering Proxy Server with Wireguard</title>
        <description>
        <![CDATA[
<h2>Web Rendering Proxy Server with Wireguard</h2>
<h3>8-May-2021</h3>

<p>The modern web is a catastrophe, <a href="https://scholar.harvard.edu/files/mickens/files/towashitallaway.pdf">as we know</a>. Older computers increasingly find it harder and harder to handle the modern website's insatiable desire to hand you Javascript, popups, autoplaying videos, ads, malware, more Javascript, downloadable fonts, libraries, full size background images, cryptominers, and gifs.</p>

<p>Web browsers used to be essentially just document viewers, and web pages were little more than documents written in a markup language (HTML) with some images here and there. The web browser today is almost an operating system. Or maybe it would be more accurate to say the operating system today is almost a <a href="https://www.google.com/chromebook/chrome-os/">web browser</a>? Either way, there is nothing driving the obsolescence of your computer faster than the demands of the modern web browser.</p>

<p>Browsers such as Dillo, Netsurf, and Lynx are incredibly fast even on old hardware because they simply don't support Javascript, but this often leads to web pages that either don't work at all, or look nothing like what they are supposed to.</p>

<p>One clever way to deal with this problem is to run a modern web browser on a different machine to do the heavy rendering, then connect to that with a lightweight browser such as Dillo, Netsurf, or whatever you like to view it. This is what <a href="https://github.com/tenox7/wrp">Web Rendering Proxy</a> does. Essentially, it runs Chromium underneath to fetch and render the web page, and creates a GIF or PNG of that rendered page, with clickable elements for the links. Your old or lightweight browser then connects to this proxy to view the image. It works quite well.</p>

<p>The only issue I have with this is that there is no security in the connection between your browser and the WRP server. This is fine if the server is on your local network, but it's a problem if you want to run it remotely, such as on a VPS, so that you can access it from anywhere.</p>

<p>To solve this, I run WRP on a Vultr High Frequency VPS on OpenBSD, with a Wireguard tunnel securing the connection between my old laptops and the VPS. To simplify this, I have a script that will configure the VPS with all of the required packages, and set the configuration, which is below:</p>

<pre>
<code>
#!/bin/sh
# This script will configure an OpenBSD 6.8 or later
# server with Wireguard and Web Rendering Proxy. It should be run as root.
#
# This script assumes the Wireguard server IP will be 10.1.1.1 and the
# client (peer) IP will be 10.1.1.2. Adjust these as you desire.
#
# Once wireguard-tools is installed, generate the private key with `wg genkey`
# Generate the public key with `echo privatekeygoeshere | wg pubkey`
#
# The private key will be placed in the /etc/wireguard/server.conf file we'll make.
# The public key will need to be supplied to the peer.
# Lastly, you'll need the peer's public key for that server.conf file too.
######################################################################

# Update existing packages, then install chromium and wireguard-tools
pkg_add -u
pkg_add chromium wireguard-tools

# Download and install WRP binary
ftp https://github.com/tenox7/wrp/releases/download/4.5.1/wrp-amd64-openbsd
install -m 755 wrp-amd64-openbsd /usr/local/bin

# Add a non-root user to run the WRP binary
useradd wrpuser

# Create wireguard interface. Modify the IP address as desired
touch /etc/hostname.wg0
cat <<EOF > /etc/hostname.wg0
10.1.1.1 255.255.255.0
!/usr/local/bin/wg setconf wg0 /etc/wireguard/server.conf
EOF

# Create wireguard conf directory and conf file. Allowed IP will be the client IP
mkdir /etc/wireguard
touch /etc/wireguard/server.conf
cat <<EOF > /etc/wireguard/server.conf
[Interface]
PrivateKey = pasteyourserverprivatekey
ListenPort = 51820

[Peer]
PublicKey = pasteyourclientpublickey
AllowedIPs = 10.1.1.2/32
EOF

# Configure firewall

cat <<EOF > /etc/pf.conf
set skip on { lo, wg }
int_ip = "10.0.0.0/8"

block drop      # block stateless traffic
pass in quick on egress proto tcp from any to egress:0 port 22
pass in quick on egress proto udp from any to egress:0 port 51820
pass in quick on 10.1.1.1 proto tcp from $int_ip to 10.1.1.1 port 80
pass out

block return in on ! lo0 proto tcp to port 6000:6010

block return out log proto {tcp udp} user _pbuild
EOF

# Use AdGuard DNS for adblocking
touch /etc/dhclient.conf
echo 'prepend domain-name-servers 176.103.130.130;' >> /etc/dhclient.conf

# Clean up
rm wrp-amd64-openbsd
echo 'Configuration done!'
echo 'Run `wg genkey` and paste the output into the PrivateKey section of /etc/wireguard/server.conf'
echo 'Run `echo privatekeygoeshere | wg pubkey` and provide the resulting public key to peer'
echo 'Add the peer public key to the [Peer] section of /etc/wireguard/server.conf'
echo 'Lastly, run `sh /etc/netstart` or reboot to apply all changes'
</code>
</pre>

<p>The only things the script does not do is configure your Wireguard keys, or your client. But using this setup, you can have an encrypted connection to your WRP VPS and not worry about transmitting passwords in clear text.</p>

<p>WRP in action rendering the full Macrumors forum in Dillo on a <a href="http://kernelpanic.life/hardware/titanium-powerbook-g4.html">titanium PowerBook G4</a>:</p>
<img src="http://kernelpanic.life/img/wrp_wireguard.jpg" alt="Web Rendering Proxy with Dillo screenshot">

<p>I found that a single CPU VPS handles the rendering side of things adequately, but a 2 CPU instance handles it better enough to be worth the extra cost if you are using this a lot.</p>

<p>The script above also lives on <a href="https://code.kernelpanic.life:3000/joe/wrpguard">code.kernelpanic.life</a> as well as <a href="https://github.com/jsf0/wrpguard">Github</a>.
        ]]>
        </description>
        <guid>http://kernelpanic.life/software/web-rendering-proxy-wireguard.html</guid>
        <link>http://kernelpanic.life/software/web-rendering-proxy-wireguard.html</link>
        <pubDate>Sat, 08 May 2021 05:00:00 GMT</pubDate>
    </item>

    <item>
	  <title>The IBM ThinkPad T23</title>
  		<description>
    	<![CDATA[
<h2>The IBM ThinkPad T23</h2>
<h3>07-May-2021</h3>

<img src="http://kernelpanic.life/img/thinkpad-t23.jpg" alt="The IBM ThinkPad T23">

<p><strong>Year:</strong> 2002</p>
<p><strong>CPU:</strong> 1.13 GHz Pentium III Mobile</p>
<p><strong>Graphics:</strong> 16 MB S3 Super Savage IX</p>
<p><strong>RAM:</strong> 1024 MB PC133</p>
<p><strong>Storage:</strong> 40 GB Hitachi HTS541640J9AT00</p>
<p><strong>"But can it run Chrome?":</strong> No </p>

<p>For many years, if you closed your eyes and imagined "laptop", I bet you'd think of something pretty much exactly like the T23: an enormous, all black, 4:3 shaped brick with a million ports. I like to think that anyone working at IBM in the early 2000s who mentioned the word "aesthetics" would have been fired on the spot. Yet somehow their ThinkPad line <i>did</i> look good, and the T23 is the very essence of that iconic ThinkPad design.</p>

<p>This is not a thin or light laptop, and by today's standards, not a fast one. But it is uncannily reliable. This particular T23 is nearly 20 years old and the only non-original parts are the hard drive (replaced in 2015 when the original died) and the TrackPoint nub, which I finally replaced a year or two ago after the original had worn down almost all the way through the material. The RAM, keyboard, display panel, motherboard, and case are all still working just fine. There are some scratches on the lid, but no cracks anywhere.</p>

<p>OpenBSD support is quite good. The Intel Pro/100 ethernet port is powered by the fxp driver. There is no wireless card in this laptop, so you can either run wireless off a USB or use a supported PCMCIA wireless card. You only get 2 USB 1.1 ports, and USB wireless is not the greatest, but a nano USB wireless adapter sits nicely out of the way, while a PCMCIA card will stick out about an inch or two from the slot.</p>

<p>Ports are plentiful, and mostly at the back of the laptop, which keeps cables out of your way. It includes a DB-9 serial port, which is something I actually use rather often. Despite the existence of USB-to-Serial cables, I have found that a real serial port is sometimes the most reliable option, and the T23 is worth keeping around just for that.</p>

<p>Graphics are provided by the built in 16 MB S3 Super Savage IX. This actually has DRM support in OpenBSD, but you won't like it. Even moving an xterm around is hilariously slow, so you are better off using Vesa instead of the savage driver in /etc/X11/xorg.conf. While you're in here, you will also want to set up middle button scrolling with the TrackPoint. My full xorg.conf with both of these configs is below:</p>

<pre>
<code>
Section "InputDevice"
        Identifier      "Trackpoint"
        Driver          "mouse"
        Option          "Protocol"      "Auto"
        Option          "Device"        "/dev/wsmouse"
EndSection

Section "InputClass"
        Identifier      "Trackpoint"
        MatchIsPointer  "True"
        Option  "Emulate3Buttons"       "False"
        Option  "EmulateWheel"  "True"
        Option  "EmulateWheelButton"    "2"
        Option  "XAxisMapping"  "6 7"
        Option  "YAxisMapping"  "4 5"
EndSection

Section "Device"
        Identifier      "gfxcard"
        Driver          "vesa"
EndSection

Section "Screen"
        Identifier      "Screen 0"
        Device          "gfxcard"
        Monitor         "Monitor 0"
        DefaultDepth    16
EndSection

Section "Monitor"
        Identifier      "Monitor 0"
        Option          "DPMS" "Disable"
EndSection
</code>
</pre>

<p>This setup has worked well for me and graphics are smooth on vesa, though 3D accleration is not something I have tried or really care about on this machine.</p>

<p>Web browsers are in a similar situation as with the <a href="http://kernelpanic.life/hardware/titanium-powerbook-g4.html">PowerBook G4</a> at the moment, despite the fact that various Javascript capable browsers exist for the i386 architecture. The Pentium III does not have SSE2 support, which means any of the standard big browsers like Firefox, Chromium, or Otter will not work on this, not that they would be a lot of fun on such an old machine. Instead, Netsurf and Dillo are my choice for graphical browsing, and lynx is a perfectly viable option for console web usage.</p>

<Other software I use is similar to the PowerBook as well. Mplayer for music, wordgrinder for word processing, mutt for email (console), or claws-mail for a graphical email client. Xpdf reads PDF files nicely if I'm unfortunate enough to have to deal with a PDF.</p>

<p>Battery life on this is about 2 hours, which is shockingly good for a machine this old. The battery holds 30 Wh out of its original 38 Wh, and apmd works to control the CPU frequency. It is actually possible to use this as a laptop on battery power only in its current state. I used to take this to Rutgers and use it as my main laptop circa 2014-2015, which always elicited comments and was great fun.</p>
    	]]>
  		</description>
  		<guid>http://kernelpanic.life/hardware/thinkpad-t23.html</guid>
  		<link>http://kernelpanic.life/hardware/thinkpad-t23.html</link>
  		<pubDate>Fri, 07 May 2021 05:00:00 GMT</pubDate>
	</item>

    <item>
      <title>Gitea on OpenBSD</title>
        <description>
        <![CDATA[
<h2>Gitea on OpenBSD</h2>
<h3>29-April-2021</h3>

<p>I wanted a self-hosted Git service, but saw how many frameworks it takes to get Gitlab up and running and immediately shut off my laptop in terror. Fortunately, there's <a href="https://gitea.com/">Gitea</a>.</p>

<p>Gitea is a self-hosted Git service that is fairly easy to setup, and provides a significantly simpler alternative to other self-hosted Git web interfaces such as Gitlab. It's written in Go and can be configured with one configuration file. Setting up an OpenBSD server running Gitea is not hard, but there are a number of things to be aware of that are not obvious.</p>

<p>Installation is done the usual way:</p>
<pre><code>
# pkg_add gitea
</code></pre>

<p>You can enable it and start it to set the initial configuration with rcctl:</p>

<pre><code>
# rcctl -f start gitea
</code></pre>

<p>This will start Gitea listening on port 3000. Open that in a web browser and set it up as desired.</p>

<p>OpenBSD changes a few defaults from a stock Gitea installation. In particular, the default configuration file is located at /etc/gitea/app.ini . However, simply starting Gitea from rcctl will <strong>not</strong> use that file by default. To force this (and I highly recommend it, because it greatly simplifies things), set the -c flag in rc.conf.local like so:</p>

<pre><code>
# rcctl enable gitea
# rcctl set gitea flags "-c /etc/gitea/app.ini"
</code></pre>

<p>Now Gitea will use /etc/gitea/app.ini for its configuration whenever it is started by rcctl.</p>

<p>The next thing I wanted was to secure the connection to Gitea with TLS. Gitea doesn't have permissions to listen on 443 directly, but I didn't really care too much about that. Instead I run it on port 3000 and run httpd on port 80 to redirect to port 3000, as well as handle Let's Encrypt verification with acme-client. A simple config for httpd gets the job done:</p>

<pre><code>
server "code.kernelpanic.life" {
        listen on * port 80
        location "/.well-known/acme-challenge/*" {
                root "/acme"
                request strip 2
        }
        location * {
                block return 302 "http://$HTTP_HOST:3000$REQUEST_URI"
        }
}
</code></pre>

<p>You can then use acme-client to configure Let's Encrypt TLS certificates, or pkg_add certbot and use that instead. To actually make Gitea enable TLS and use your cert, you will have to set the protocol to http in /etc/gitea/app.ini and make the certs available to Gitea, as the _gitea user will not be able to read the usual location of /etc/ssl/private.</p>

<p>I changed the following lines in /etc/gitea/app.ini to look like so:</p>

<pre><code>
PROTOCOL                        = http
CERT_FILE                       = /var/gitea/custom/http/fullchain.pem
KEY_FILE                        = /var/gitea/custom/http/key.pem
</code></pre>

<p>At this point, Gitea will run on port 3000 and use TLS with the cert/key pair found in /var/gitea/custom/http/. httpd will run on port 80 and handle future Let's Encrypt verification requests initiated by acme-client, and redirect traffic to port 3000.</p>

<p>There are two other options I changed. I wanted anyone to be able to view my repositories without having to be signed in, and also make the "Explore" view the default. These lines change that:</p>

<pre><code>
REQUIRE_SIGNIN_VIEW             = false
LANDING_PAGE                    = explore
</code></pre>

<p>There are a ton of options in /etc/gita/app.ini but this does the job for my purposes. So far, I'm pretty happy with this setup.</p>

<p>You can browse my repos on my OpenBSD Gitea server here: <a href="https://code.kernelpanic.life:3000/explore/repos">code.kernelpanic.life</a></p>
        ]]>
        </description>
        <guid>http://kernelpanic.life/software/gitea-on-openbsd.html</guid>
        <link>http://kernelpanic.life/software/gitea-on-openbsd.html</link>
        <pubDate>Thu, 29 Apr 2021 05:00:00 GMT</pubDate>
    </item>

    <item>
      <title>Broadcast Commands in tmux</title>
        <description>
        <![CDATA[
<h2>Broadcast Commands in tmux</h2>
<h3>23-April-2021</h3>

<p>I am a big fan of the <a href="https://gnome-terminator.org/">Terminator</a> terminal emulator because of its ability to both act as a multiplexer and broadcast a command to all panes simultaneously. This drastically speeds up executing the same task on multiple servers simultaneously (starting a Puppet run on  a bunch of servers at once, for example).</p>

<p>However, one problem with Terminator is that it is a somewhat heavyweight application, pulling in piles of dependencies on a lean Linux or BSD install. As far as I know, is not available for macOS either. It also requires X11, which is a problem if running through a <a href="http://kernelpanic.life/hardware/dec-alphastation-250.html">VT220</a>. Fortunately, there's <a href="https://github.com/tmux/tmux">tmux</a>, a lightweight terminal multiplexer which can be made to broadcast to multiple panes just like Terminator, but does not have a large dependency chain, and comes in the OpenBSD base system.</p>

<p>The magic is in tmux's "synchronize-panes" option, which can be toggled within a tmux session by typing the prefix combination, ctrl-b, then the colon : , which opens a prompt that can be used to set various options. The following option will toggle broadcasting to all panes:</p>

<pre><code>setw synchronize-panes</code></pre>

<p>Typing that again will turn off pane synchronization, but this is a bit cumbersome. Instead of doing that each time, I made a keybinding shortcut in ~/.tmux.conf that will toggle it for me:</p>

<pre>
<code>
bind a setw synchronize-panes
setw -g window-status-current-format '#{?pane_synchronized,#[bg=red],}#I:#W'
setw -g window-status-format         '#{?pane_synchronized,#[bg=red],}#I:#W'
</code>
</pre>

<p>The top line binds the 'a' key to the synchronize panes option. To toggle it now, just do ctrl-b, then 'a'. The bottom two lines are shamelessly stolen from Jonathan Palardy's excellent <a href="https://blog.jpalardy.com/posts/tmux-synchronized-panes/">blog post</a> about the synchronize panes option in tmux. These lines set the pane borders to red when pane synchronization is on, so that you have a visual indicator of it, saving you from the potential catastrophe of inadvertently broadcasting a dangerous command when SSH'd in to multiple servers.</p>
        ]]>
        </description>
        <guid>http://kernelpanic.life/software/broadcast-commands-in-tmux.html</guid>
        <link>http://kernelpanic.life/software/broadcast-commands-in-tmux.html</link>
        <pubDate>Fri, 23 Apr 2021 05:00:00 GMT</pubDate>
    </item>

    <item>
      <title>The DEC AlphaStation 250 4/266</title>
        <description>
        <![CDATA[
<h2>The DEC AlphaStation 250 4/266</h2>
<h3>17-April-2021</h3>

<img src="http://kernelpanic.life/img/dec-alphastation-scaled.jpg" alt="The DEC AlphaStation 250 4/266">

<p><strong>Year:</strong> 1995</p>
<p><strong>CPU:</strong> 266 MHz Alpha 21064A</p>
<p><strong>Graphics:</strong> DECchip 21030, 1280x1024, 8 bpp</p>
<p><strong>RAM:</strong> 128 MB</p>
<p><strong>Storage:</strong> IBM DDRS-34560 4.5GB 7.2K RPM 3.5" 50-Pin SCSI hard drive</p>
<p><strong>"But can it run Chrome?":</strong> Of couse not </p>

<p>In a society that constantly implores us to upgrade to the newest thing, it can be refreshing to see how much you can do without. One of the better ways to do that is to use an old computer.</p>

<p>The DEC AlphaStation would certainly qualify as old. This particular model, the 250 4/266, was built around 1995 by the struggling, but once-giant Digital Equipment Corporation only a few years before the company's corpse was bought by Compaq in 1998, then Hewlett Packard in 2002. I have always had a fondness for the last DEC machines because they were made right before the world standardized on the x86 architecture and Windows as the default choice for workstations.</p>

<p>In contrast, the AlphaStation runs DEC's 266 MHz, 64 bit Alpha-based DECchip, and was offered with the customer's choice of Digital Unix (later OSF/1), VMS, or Windows NT, which interestingly was once available for the Alpha architecture. The cost was fairly enormous, with this machine's configuration having an MSRP of over $19K in 1995 dollars.</p>

<p>This particular machine was originally sold to Stanford University's library, and came to me with OSF/1 installed. Some of Stanford's original configuration files were even present on the drive when I got this, which was quite cool, but the drive made such a whirring noise that it was clearly not going to run for much longer. Sadly the bearing failed shortly thereafter, and I replaced it with an IBM drive and installed OpenBSD/alpha.</p>

<p>The OSF/1 install did include X11, and the machine has a video card that is detected and supported by the tga driver in OpenBSD, but I could not get X11 to work with OSF/1, and it is apparently broken on OpenBSD/alpha, so I paired the AlphaStation with a VT220. The VT220 itself was made in 1985 and is the amber version, which I greatly prefer to the green models also offered. This came without a keyboard, but I found a DEC LK402-AA keyboard on eBay sealed in its original box, happily paid way too much for it, and now have a brand new, old keyboard to use with the terminal.</p>

<p>The keyboard offers kind of an odd typing experience. These have flat steel leaf springs under the keys, with a membrane underneath that to register the keypress. Since this keyboard was never used, the keys can be quite stiff. A built-in speaker chirps on each keystroke, and an audible bell hollers at you every time the terminal bell is triggered. It's fantastic. The layout is a Unix oriented version of the LK201 keyboard, and takes some getting used to. I have not been able to figure out how to change the layout in OpenBSD, so many of the extra functions do not work, and some of the regular keys (like Esc) do not register correctly. In vi, this is annoying, but can be worked around by pressing Ctrl-[ to effectively hit Esc and change modes.</p>

<p>Installing OpenBSD is not much different than on any other system. It will take quite some time to complete, but it works fine. I did not try anything fancy, like disk encryption or RAID. Ethernet is supported and works reliably, so in theory one could do anything they would do through SSH on this machine. There are no prebuilt packages, so if you want to install additional software, compiling from ports is the only option. This is not a fast process. I compiled lynx so that I could have a web browser but didn't feel the need to compile much else after seeing how long that took.</p>

<p>One other issue with this machine is that the 128 MB of RAM is not enough for KARL to relink the kernel. This means that on every boot, I have to wait about 10-15 minutes for KARL to relink the kernel, furiously swapping to the hard drive as it does this, before the machine is usable. I was able to find an additional 128 MB of RAM, and theoretically this board can handle 256 MB, but space is extremely tight between the RAM sticks, and I am uneasy with trying to force anything. Rather than break something expensive, I will live with the RAM limitation for now.</p>

<p>So what can you do with this? Anything that can work entirely on a console and does not require extra software outside of the base system will work the same as it does anywhere else, only slower. Text editing with vi is no problem, web browsing with lynx is relatively smooth, and tmux makes dealing with a VT220 much more functional. This whole post was written on the AlphaStation, through SSH. I also use it for C development to find inefficient code (it is very good at this!) or code that is not portable between architectures. It's fun to see how much it can do.</p>
        ]]>
        </description>
        <guid>http://kernelpanic.life/hardware/dec-alphastation-250.html</guid>
        <link>http://kernelpanic.life/hardware/dec-alphastation-250.html</link>
        <pubDate>Sat, 17 Apr 2021 05:00:00 GMT</pubDate>
    </item>

    <item>
      <title>The Titanium PowerBook G4</title>
        <description>
        <![CDATA[
<h2>The Titanium PowerBook G4</h2>
<h3>15-April-2021</h3>

<img src="http://kernelpanic.life/img/titanium-powerbook-g4-scaled.jpg" alt="The Titanium PowerBook G4">

<p><strong>Year:</strong> 2002</p>
<p><strong>CPU:</strong> 1.0 GHz PowerPC 7455</p>
<p><strong>Graphics:</strong> Mobility Radeon 9000 64 MB</p>
<p><strong>RAM:</strong> 512 MB PC133</p>
<p><strong>Storage:</strong> 60 GB 4200 RPM 2.5" IDE HDD</p>
<p><strong>"But can it run Chrome?":</strong> No </p>

<p>The last titanium PowerBook, released in 2002, is my favorite laptop. It is still a modern design, with thin bezels and a relatively streamlined profile, but was built when you were still allowed to put usable ports on a laptop. The black keyboard in the silvery chassis stands out, and aesthetically, is a design Apple would of course later return to many years later with the unibody laptops. It is fantastic to type with it. The ports are all at the rear, so cables are nicely out of your way, and Apple's Brave New World of dongle hell is blissfully absent. Network connectivity includes a gigabit capable ethernet port (using the gem driver in OpenBSD), a 56k modem, and an 802.11b wireless card (using the wi driver).</p>

<p>I've been running OpenBSD/macppc on this and am perfectly happy with the performance. The wireless card is usable with the wi driver, though it cannot handle WPA or WPA2, so you may want to use a USB wireless device if you aren't willing to run an open or WEP wireless network. Graphics acceleration is provided with radeondrm, and works flawlessly. The battery in this is toast, so I have no idea about battery life. Probably not very good, but apmd does work to control the CPU speed.</p>

<p>The keyboard pops off easily by sliding two tabs towards you and lifting the top edge. This exposes part of the logic board, and critically, the PMU reset button in the upper right. These will downclock to 667 MHz if they do not detect a battery, and I have found that I need to reset the PMU in order for this to reliably occur. I'm sure the PMU battery is long dead  and is the likely culprit here, but resetting the PMU before booting does yield full 1.0 GHz performance.</p>

<p>Besides the usual OpenFirmware settings changes, there is nothing special about installing OpenBSD on this, except that if you want to use disk encryption, there is no support for booting softraid-encrypted volumes on macppc. I made a separate encrypted softraid partition during install that is decrypted and mounted at /home/joe on every boot. The following lines in /etc/rc.securelevel do the job:</p>
<pre>
<code>
bioctl -c C -l /dev/wd0m softraid0
mount /dev/sd0a /home/joe
</code>
</pre>

<p>Various desktop envrionments and window managers are available, but I use cwm on everything and refuse to use anything else. For this laptop, it is blazing fast and I am so used to my shortcuts that I don't want to learn any other system. That said, you can install and run something like XFCE if you choose; it's only a pkg_add away.</p>

<p>For graphical web browsing, your best bet is probably Dillo or Netsurf. Dillo is quick, but does not render web pages as well as Netsurf. Lynx and other console-only browsers work great, as expected. For email, I use mutt, but claws-mail works as well if you prefer fancy graphics. The collection of macppc packages for OpenBSD is tending to dwindle, but there are many packages that will cover the basic uses.</p>

<p>Playing audio is possible with mplayer, and the speakers are significantly better than those on the 2014 MacBook Pro. Progress isn't always upward.</p>

<p>One annoying thing about this laptop is the single button trackpad. In OpenBSD, this only provides left click functionality, so right clicking or middle clicking is impossible. For pasting text in X11, middle clicking is essential. Fortunately, there is a workaround. I use xmodmap(1) to remap the F10 and F11 keys for middle click and right click, respectively.</p>

<p>In ~/.xmodmaprc, add the following lines:</p>
<pre>
<code>
keycode 76 = Pointer_Button2
keycode 95 = Pointer_Button3
</code>
</pre>

<p>Then, run xmodmap(1) and xkbset(1) to enable:</p>
<pre>
<code>
$ xmodmap ~/.xmodmaprc
$ xkbset m
</code>
</pre>

<p>This could be added to a script and run on xenodm startup, or run manually if you prefer.</p>

<p>So, what can you do with this in 2021? Well I have no idea about the state of OS X or Linux on these, because I have never run either. With OpenBSD at least, if you are reasonable and are willing to forego Javascript browsers, it can do most tasks. You won't be very happy if you expect it to run Firefox or Chrome and watch Youtube, and software selection is more limited. Simple web browsing, email, sysadmin tasks, development, and the like are feasible though, and this entire website was written on this laptop wtihout it being a burden. If you're willing to put in some effort, they're great laptops.</p>
        ]]>
        </description>
        <guid>http://kernelpanic.life/hardware/titanium-powerbook-g4.html</guid>
        <link>http://kernelpanic.life/hardware/titanium-powerbook-g4.html</link>
        <pubDate>Thu, 15 Apr 2021 05:00:00 GMT</pubDate>
    </item>

    <item>
      <title>Lazy Configuration Management</title>
        <description>
        <![CDATA[
<h2>Lazy Configuration Management</h2>
<h3>10-April-2021</h3>
<p>I have a bad habit of buying old computers, and part of the tedium associated with this is setting up each one exactly how I want it, or applying a config that I already know I like on a new machine. Of course, there are many configuration management tools for automating configuration, such as Puppet, Ansible, Chef, and others, but they all suffer from one problem: they take effort to use, and I can't be bothered.</p>

<p>I wanted something similar, but stripped to the bare minimum. Ideally such a tool would require no dependencies on the client, no agent or other extra software installed on the target machine, and not require learning any markup languages.</p>

<p>The result of this was <a href="http://github.com/jsf0/standoff">standoff</a>. Since I primarily use OpenBSD, writing this in Perl (eek!) mostly solves the dependency problem, since it is included in the base system. SSH can be used for connections, and the actual config files are in INI format, so they are easy to read and understand. The only dependencies are the Perl modules Net::OpenSSH and Config::IniFiles, and nothing needs to be running or installed on the target host other than SSH and a shell.</p>

<p>Config files follow a simple format. Set the target(s), any files you want to upload, and any commands you want to run. An example is below:</p>
<pre><code>
[Target]
target=172.16.1.1
ssh_key=/path/to/ssh_key

[Files]
file=httpd.conf

[Commands]
command=doas cp httpd.conf /etc
command=doas rcctl reload httpd
</code></pre>

<p>Then, you can apply the config on the target like so:</p>
<pre><code>$ standoff -f payload_file.ini</code></pre>
<p>Is this better than Ansible or Puppet? No. But it's 1 fairly small Perl file, which you might even be able to understand. You can use it in weird situations, like remotely configuring Ubiquiti access points without using Ubiquiti's controller software (I don't know why you would want to do this, but you can). You don't need to learn an actual markup language to use it. If I have a situation that calls for something like Ansible but isn't worth the work to set it up, this does the job.</p>
        ]]>
        </description>
        <guid>http://kernelpanic.life/software/lazy-configuration-management.html</guid>
        <link>http://kernelpanic.life/software/lazy-configuration-management.html</link>
        <pubDate>Sat, 10 Apr 2021 05:00:00 GMT</pubDate>
    </item>

    <item>
      <title>Varnish on OpenBSD 6.8 with httpd</title>
        <description>
        <![CDATA[
<h2>Varnish on OpenBSD 6.8 with httpd</h2>
<h3>09-April-2021</h3>
<p>I spent today setting up the server for this website and decided to use Varnish as an HTTP cache with OpenBSD's built-in web server, httpd. The internet has very little information about using Varnish on OpenBSD specifically, so this post can serve to document the steps. For a simple site like this, Varnish is quite unnecessary and kind of ridiculous, but it is fun to play with it.</p>

<p>Setting up httpd is easy, and it can be made even easier by copying the example configuration file /etc/examples/httpd.conf to /etc. For use with Varnish, I have httpd listening on 127.0.0.1:8080. Varnish will listen on the external IP on port 80, and use 127.0.0.1:8080 for its backend. The full config for httpd can be found below:</p>

<pre><code>server "kernelpanic.life" {
	listen on 127.0.0.1 port 8080
	root "/htdocs/kernelpanic"
}
</code></pre>
<p>That's all I need here. Of course it will need to be enabled:</p>
<pre><code># rcctl enable httpd</code></pre>
<p>Varnish is available as a package, and can be installed and enabled easily:</p>

<pre><code># pkg_add varnish
# rcctl enable varnishd
</code></pre>

<p>I'm not bothering with a config file for this, but this means Varnish will need some flags set for the daemon:</p>
<pre><code># rcctl set varnishd flags "-a :80 -b 127.0.0.1:8080 -s malloc,256m -T none"</code></pre>
<p>That's pretty much all you need to get it working. Reboot or start the services manually, and incoming requests will hit Varnish, which will pull your website files from the httpd server running at 127.0.0.1:8080.</p>

<p>By default, this won't do much logging of client requests beyond /var/www/logs/access.log but this file will only show requests from Varnish, not clients. If you want Varnish to log client requests, you need to run the varnishncsa binary. I'm starting this with the following line in /etc/rc.local:</p>
<pre><code>varnishncsa -D -w /var/varnish/kernelpanic.life/access.log</code></pre>
<p>This will log all requests that hit varnishd to the access.log file. </p>
<p>So does it make a difference? Typically Varnish is used to cache dynamically generated content that does not change often, saving expensive database lookups and PHP operations. For a site that like this that is already just static HTML, it may not make a difference. To find out, I tested this post's page with <a href="https://loader.io">loader.io</a> both with and without Varnish to see if it made a difference. Each test used 10,000 simultaneous connections over 1 minute, and each test was run twice.</p>
<p>Without Varnish (just OpenBSD's httpd, with the config file above):</p>
<ul>
	<li>Average response time: 66 milliseconds</li>
	<li>Minimum response time: 33 milliseconds</li>
	<li>Maximum response time: 102 milliseconds</li>
</ul>
<p>With Varnish:</p>
<ul>
	<li>Average response time: 33 milliseconds</li>
	<li>Minimum response time: 33 milliseconds</li>
	<li>Maximum response time: 70 milliseconds</li>
</ul>
<p>Even for this very basic static HTML site, Varnish cut the average response times in half under a heavy load. That's pretty good, and probably is limited more by the network connection from the testers to the server more than it is by the server itself.</p>
        ]]>
        </description>
        <guid>http://kernelpanic.life/software/openbsd-varnish-httpd.html</guid>
        <link>http://kernelpanic.life/software/openbsd-varnish-httpd.html</link>
        <pubDate>Fri, 09 Apr 2021 05:00:00 GMT</pubDate>
    </item>


	</channel>
</rss>
