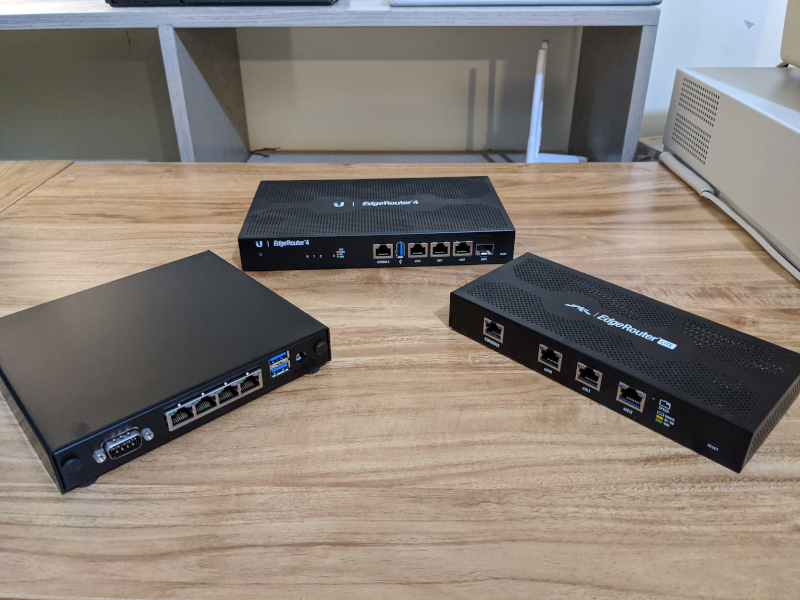

I've been using OpenBSD for my home router/gateway for years, and have run it on a number of different types of hardware. I recently got Verizon's gigabit service which is advertised at up to 940 Mb/s download and 880 Mb/s upload speeds, so I decided to benchmark some of the routers I have laying around. The contestants are:
All of these routers are running OpenBSD 6.9 and are set up exactly as described in the Building a Router FAQ page. There are lots of tweaks people do for performance, but I did not test any of them. What you see in the guide is what you get. CPU frequency was set at the maximum via apmd, where applicable.
Testing was done from a T14 running Ubuntu 20.04 with 3 runs at Speedtest.net using the Vultr speed test server. This is not perfect as it only tests web traffic, so smaller or larger packet sizes than what you find in web traffic are not tested, nor is UDP tested either. Since this is going to an external server outside my network, it also sends that traffic over other carriers, so some of this is at the mercy of the route. But this is not meant to be scientific, and probably represents how most people will use their router anyway.
Results are below, (averaged over the 3 tests):
The EdgeRouter Lite has a small ASIC onboard for packet forwarding which is used by Ubiquiti's EdgeOS. OpenBSD does not use this at all, so all of this was done by the two 500 MHz cores. One interesting thing is that the EdgeRouter 4 was signifcantly faster than the APU4, beating it by about 100 Mb/s. Despite the fact that both have four 1 GHz cores, the Octeon apparently moves packets around better than the AMD Jaguar. The fastest in the list is unsurprisingly the Xeon powered Supermicro E300, and it likely can go faster, but the connection may have been the limitation here.
I am currently using the Supermicro as my router, though my favorite device is the EdgeRouter 4 here for the best balance of speed and low power consumption. The E300's fans have a very whiny pitch to them that has made me relegate this machine to the basement. On the plus side, it has IPMI, and it is fast enough to be usable for other purposes.
Update: There was some criticism of using Speedtest.net as the test method, which I expected and I agree with it. I ran the following tests with iperf3 to see if there would be a difference. I did not test the Supermicro in this manner. iperf3 was running on the Supermicro in server mode, and the T14 laptop was connecting through the tested router to the iperf3 server on the Supermicro for all of these tests. These were with iperf3's default options.
I also tried with and without the scrub and antispoof lines in pf.conf to see if that would make any difference. See below for the results:
EdgeRouter Lite with scrub/antispoof
Accepted connection from 192.168.1.99, port 51479
[ 5] local 192.168.1.1 port 5201 connected to 192.168.1.99 port 50181
[ ID] Interval Transfer Bitrate
[ 5] 0.00-1.00 sec 12.9 MBytes 108 Mbits/sec
[ 5] 1.00-2.00 sec 14.8 MBytes 124 Mbits/sec
[ 5] 2.00-3.00 sec 15.1 MBytes 127 Mbits/sec
[ 5] 3.00-4.00 sec 15.5 MBytes 130 Mbits/sec
[ 5] 4.00-5.00 sec 15.6 MBytes 131 Mbits/sec
[ 5] 5.00-6.00 sec 15.1 MBytes 126 Mbits/sec
[ 5] 6.00-7.00 sec 15.4 MBytes 129 Mbits/sec
[ 5] 7.00-8.00 sec 14.7 MBytes 123 Mbits/sec
[ 5] 8.00-9.00 sec 14.9 MBytes 125 Mbits/sec
[ 5] 8.00-9.00 sec 14.9 MBytes 125 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate
[ 5] 0.00-9.00 sec 142 MBytes 133 Mbits/sec receiver
EdgeRouter Lite without scrub/antispoof
Accepted connection from 192.168.1.99, port 62412
[ 5] local 192.168.1.1 port 5201 connected to 192.168.1.99 port 51770
[ ID] Interval Transfer Bitrate
[ 5] 0.00-1.00 sec 10.5 MBytes 87.8 Mbits/sec
[ 5] 1.00-2.00 sec 15.6 MBytes 131 Mbits/sec
[ 5] 2.00-3.00 sec 16.5 MBytes 139 Mbits/sec
[ 5] 3.00-4.00 sec 16.6 MBytes 139 Mbits/sec
[ 5] 4.00-5.00 sec 16.6 MBytes 139 Mbits/sec
[ 5] 5.00-6.00 sec 17.3 MBytes 145 Mbits/sec
[ 5] 6.00-7.00 sec 16.0 MBytes 134 Mbits/sec
[ 5] 7.00-8.00 sec 18.2 MBytes 153 Mbits/sec
[ 5] 8.00-9.00 sec 17.9 MBytes 150 Mbits/sec
[ 5] 9.00-10.00 sec 17.0 MBytes 143 Mbits/sec
[ 5] 10.00-10.01 sec 177 KBytes 132 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate
[ 5] 0.00-10.01 sec 162 MBytes 136 Mbits/sec receiver
APU4 with scrub/antispoof
Accepted connection from 192.168.1.103, port 62063
[ 5] local 192.168.1.1 port 5201 connected to 192.168.1.103 port 58644
[ ID] Interval Transfer Bitrate
[ 5] 0.00-1.00 sec 28.4 MBytes 238 Mbits/sec
[ 5] 1.00-2.00 sec 41.9 MBytes 351 Mbits/sec
[ 5] 2.00-3.00 sec 47.4 MBytes 397 Mbits/sec
[ 5] 3.00-4.00 sec 50.2 MBytes 421 Mbits/sec
[ 5] 4.00-5.00 sec 51.6 MBytes 433 Mbits/sec
[ 5] 5.00-6.00 sec 52.4 MBytes 439 Mbits/sec
[ 5] 6.00-7.00 sec 53.3 MBytes 447 Mbits/sec
[ 5] 7.00-8.00 sec 54.0 MBytes 453 Mbits/sec
[ 5] 8.00-9.00 sec 54.3 MBytes 456 Mbits/sec
[ 5] 9.00-10.00 sec 54.6 MBytes 458 Mbits/sec
[ 5] 10.00-10.00 sec 64.2 KBytes 451 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate
[ 5] 0.00-10.00 sec 488 MBytes 409 Mbits/sec receiver
APU4 without scrub/antispoof
Accepted connection from 192.168.1.103, port 60797
[ 5] local 192.168.1.1 port 5201 connected to 192.168.1.103 port 64446
[ ID] Interval Transfer Bitrate
[ 5] 0.00-1.00 sec 35.2 MBytes 295 Mbits/sec
[ 5] 1.00-2.00 sec 45.1 MBytes 379 Mbits/sec
[ 5] 2.00-3.00 sec 49.9 MBytes 419 Mbits/sec
[ 5] 3.00-4.00 sec 51.6 MBytes 433 Mbits/sec
[ 5] 4.00-5.00 sec 53.6 MBytes 450 Mbits/sec
[ 5] 5.00-6.00 sec 52.4 MBytes 440 Mbits/sec
[ 5] 6.00-7.00 sec 55.9 MBytes 469 Mbits/sec
[ 5] 7.00-8.00 sec 56.6 MBytes 475 Mbits/sec
[ 5] 8.00-9.00 sec 57.0 MBytes 478 Mbits/sec
[ 5] 9.00-10.00 sec 57.3 MBytes 481 Mbits/sec
[ 5] 10.00-10.00 sec 245 KBytes 543 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate
[ 5] 0.00-10.00 sec 515 MBytes 432 Mbits/sec receiver
EdgeRouter 4 with scrub/antispoof
Accepted connection from 192.168.1.97, port 57379
[ 5] local 192.168.1.1 port 5201 connected to 192.168.1.97 port 54255
[ ID] Interval Transfer Bitrate
[ 5] 0.00-1.00 sec 26.4 MBytes 222 Mbits/sec
[ 5] 1.00-2.00 sec 42.8 MBytes 359 Mbits/sec
[ 5] 2.00-3.00 sec 51.7 MBytes 434 Mbits/sec
[ 5] 3.00-4.00 sec 56.2 MBytes 472 Mbits/sec
[ 5] 4.00-5.00 sec 60.2 MBytes 505 Mbits/sec
[ 5] 5.00-6.00 sec 62.5 MBytes 524 Mbits/sec
[ 5] 6.00-7.00 sec 64.4 MBytes 540 Mbits/sec
[ 5] 7.00-8.00 sec 65.5 MBytes 549 Mbits/sec
[ 5] 8.00-9.00 sec 66.8 MBytes 560 Mbits/sec
[ 5] 9.00-10.00 sec 66.4 MBytes 557 Mbits/sec
[ 5] 10.00-10.00 sec 156 KBytes 515 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate
[ 5] 0.00-10.00 sec 563 MBytes 472 Mbits/sec receiver
EdgeRouter 4 without scrub/antispoof
Accepted connection from 192.168.1.97, port 60739
[ 5] local 192.168.1.1 port 5201 connected to 192.168.1.97 port 60797
[ ID] Interval Transfer Bitrate
[ 5] 0.00-1.00 sec 25.0 MBytes 209 Mbits/sec
[ 5] 1.00-2.00 sec 42.7 MBytes 358 Mbits/sec
[ 5] 2.00-3.00 sec 54.5 MBytes 457 Mbits/sec
[ 5] 3.00-4.00 sec 60.4 MBytes 507 Mbits/sec
[ 5] 4.00-5.00 sec 64.7 MBytes 543 Mbits/sec
[ 5] 5.00-6.00 sec 68.1 MBytes 571 Mbits/sec
[ 5] 6.00-7.00 sec 69.3 MBytes 581 Mbits/sec
[ 5] 7.00-8.00 sec 71.1 MBytes 596 Mbits/sec
[ 5] 8.00-9.00 sec 72.2 MBytes 606 Mbits/sec
[ 5] 9.00-10.00 sec 72.8 MBytes 611 Mbits/sec
[ 5] 10.00-10.00 sec 158 KBytes 552 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate
[ 5] 0.00-10.00 sec 601 MBytes 504 Mbits/sec receiver
I also measured the power consumption of each of these from the wall at idle and under load:
There was little discernible difference in power consumption between these, and they could be within the margin of error of the device I used to measure.
Update 11-June-2021: The APU4 was on an old BIOS when tested, which did not support boosting CPU core clock speed under load. This is a feature added in v4.9.0.2, and will boost to 1.4 GHz. I updated the BIOS to v4.13.06 and re-ran the tests on the APU4, which can be seen below (tested for 60 seconds with 6 second interval):
Connecting to host 192.168.1.1, port 5201
[ 5] local 172.16.1.3 port 4631 connected to 192.168.1.1 port 5201
[ ID] Interval Transfer Bitrate
[ 5] 0.00-6.00 sec 349 MBytes 488 Mbits/sec
[ 5] 6.00-12.00 sec 422 MBytes 590 Mbits/sec
[ 5] 12.00-18.00 sec 425 MBytes 594 Mbits/sec
[ 5] 18.00-24.00 sec 425 MBytes 595 Mbits/sec
[ 5] 24.00-30.00 sec 425 MBytes 595 Mbits/sec
[ 5] 30.00-36.00 sec 425 MBytes 594 Mbits/sec
[ 5] 36.00-42.00 sec 425 MBytes 595 Mbits/sec
[ 5] 42.00-48.01 sec 427 MBytes 597 Mbits/sec
[ 5] 48.01-54.01 sec 424 MBytes 592 Mbits/sec
[ 5] 54.01-60.01 sec 425 MBytes 594 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate
[ 5] 0.00-60.01 sec 4.08 GBytes 583 Mbits/sec sender
[ 5] 0.00-60.17 sec 4.08 GBytes 582 Mbits/sec receiver
Without scrub and antispoof:
Connecting to host 192.168.1.1, port 5201
[ 5] local 172.16.1.3 port 4336 connected to 192.168.1.1 port 5201
[ ID] Interval Transfer Bitrate
[ 5] 0.00-6.00 sec 387 MBytes 541 Mbits/sec
[ 5] 6.00-12.00 sec 476 MBytes 665 Mbits/sec
[ 5] 12.00-18.00 sec 482 MBytes 675 Mbits/sec
[ 5] 18.00-24.00 sec 484 MBytes 676 Mbits/sec
[ 5] 24.00-30.00 sec 482 MBytes 675 Mbits/sec
[ 5] 30.00-36.00 sec 483 MBytes 676 Mbits/sec
[ 5] 36.00-42.00 sec 481 MBytes 672 Mbits/sec
[ 5] 42.00-48.00 sec 480 MBytes 671 Mbits/sec
[ 5] 48.00-54.00 sec 480 MBytes 670 Mbits/sec
[ 5] 54.00-60.00 sec 469 MBytes 655 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate
[ 5] 0.00-60.00 sec 4.59 GBytes 658 Mbits/sec sender
[ 5] 0.00-60.14 sec 4.59 GBytes 656 Mbits/sec receiver
